Question

Explain why: An optical pyrometer (for measuring high temperatures) calibrated for an ideal black body radiation gives too low a value for the temperature of a red hot iron piece in the open, but gives a correct value for the temperature when the same piece is in the furnace.

✓

Answer

An optical pyrometer calibrated for an ideal black body radiation gives too low a value for temperature of a red hot iron piece kept in the open. Black body radiation equation is given by: $\text{E}=\sigma(\text{T}^4-\text{T}_0^4)$ Where, E = Energy radiation. T = Temperature of optical pyrometer. $T_0$ = Temperature of open space. $\sigma$ = Constant. Hence, an increase in the temperature of open space reduces the radiation energy. When the same piece of iron is placed in a furnace, the radiation energy, $\text{E}=\sigma\text{T}^4$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Thermal Properties of Matter→Thermal Properties of Matter — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

Just as precise measurements are necessary in science, it is equally important to be able to make rough estimates of quantities using rudimentary ideas and common observations. Think of ways by which you can estimate the following (where an estimate is difficult to obtain, try to get an upper bound on the quantity): The number of air molecules in your classroom.

To what depth must a rubber ball be taken in deep sea so that its volume is decreased by $0.1 \%$. (The bulk modulus of rubber is $9.8 \times 10^8 \mathrm{~N} \mathrm{~m}^{-2}$, and the density of sea water is $10^3 \mathrm{~kg} \mathrm{~m}^{-3}$.)

The current in a solenoid of 240 turns, having a length of 12cm and a radius of 2cm, changes at a rate of 0.8A/s. Find the emf induced in it.

E, m, I and G denote energy, mass, angular momentum and gravitational constant respectively. Determine the dimensions of $\frac{\text{El}^2}{\text{m}^5\text{G}^2}$

An object of mass m is moving in a circular path of radius R at a constant speed v. Obtain an expression for the magnitude of acceleration of the body.

A 40cm wire having a mass of 3.2g is stretched between two fixed supports 40.05cm apart. In its fundamental mode, the wire vibrates at 220Hz. If the area of cross-section of the wire is $1.0mm^2$, find its Young's modulus.

If the radius of the Earth were increased by a factor of 3, by what factor would its density have to be changed to keep 'g' the same?

Four persons K, L, M and N start from the vertices of a square of side 'a', simultaneously and move towards the neighbour in order always with the same speed of v. When and where do they meet?

What is the change in momentum between the initial and final points of the projectile path, if the range is maximum?

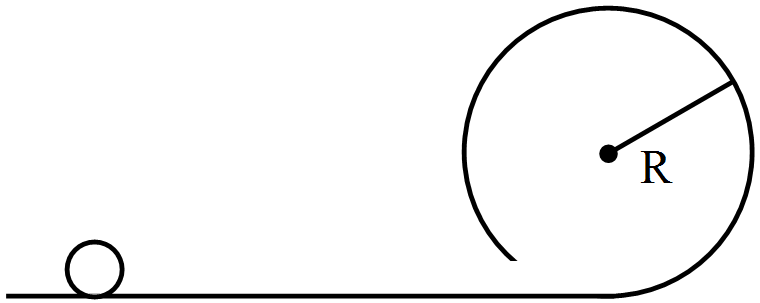

Figure shows a rough track, a portion of which is in the form of a cylinder of radius R. With what minimum linear speed should a sphere of radius r be set rolling on the horizontal part so that it completely goes round the circle on the cylindrical part.
