Question
Explain why does conductivity of germanium crystals increase on doping with galium.
✓
Answer
On doping tetravalent germanium with trivalent galium some of the positions of lattice of germanium are occupied by galium. Galium atom has only three valence electrons. Therefore, fourth valency of nearby germanium atom is not satisfied. The place remains vacant. This place is deficient of electrons and is therefore called electron hole or electron vacancy. Electron from neighbouring atom comes and fills the gap, thereby creating a hole in its original position. Under the influence of electric field electrons move towards positively charged plates through these holes and conduct electricity. The holes appear to move towards negatively charged plates.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A first order reaction has a rate constant of $0.0051\ min^{–1}$. If we begin with $0.10 M$ concentration of the reactant, what concentration of the reactant will be left after $3$ hours?
→Explain unimolecular nucleophilic substitution $(S_N1)$ reaction with mechanism.
→Amino acids may be acidic, alkaline or neutral. How does this happen? What are essential and non-essential amino acids? Name one of each type.
Match the type of unit cell given in Column I with the features given in Column II.
| Column I | Column I | ||
|
(i)
|
Primitive cubic unit cell
|
(a)
|
Each of the three perpendicular edges compulsorily have the different edge length i.e; a ≠ b ≠ c.
|
|
(ii)
|
Body centred cubic unit cell
|
(b)
|
Number of atoms per unit cell is one.
|
|
(iii)
|
Face centred cubic unit cell
|
(c)
|
Each of the three perpendicular edges compulsorily have the same edge length i.e.; a = b = c
|
|
(iv)
|
End centred orthorhombic unit cell
|
(d)
|
In addition to the contribution from the corner atoms the number of atoms present in a unit cell is one.
|
|
|
|
(e)
|
In addition to the contribution from the corner atoms the number of atoms present in a unit cell is three.
|
Name three oxoacids of nitrogen. Write the disproportionation reaction of that oxoacid of nitrogen in which nitrogen is in $+3$ oxidation state.

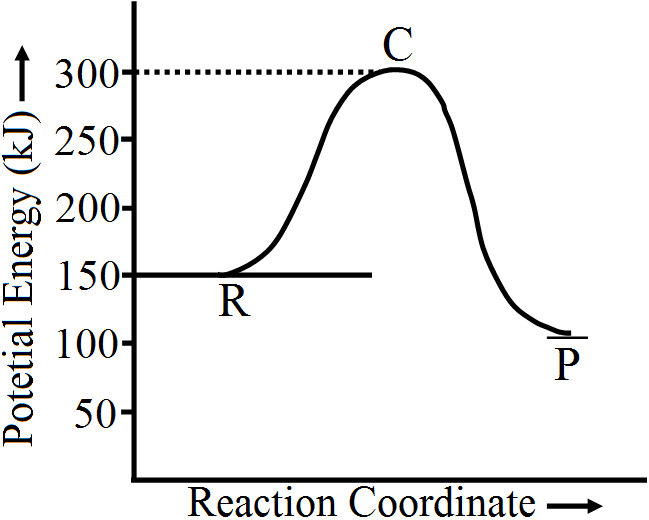

→Answer the following questions on the basis of the given plot of potential energy vs reaction coordinate:
