Find all the other angles inside the following rectangles. - Vidyadip

Question

Find all the other angles inside the following rectangles.

✓

Answer

$\begin{array}{l}\angle 1+\angle 9=90^{\circ} \ldots \ldots . . \text { (All corner angles of a rectangle are $90^{\circ}$} \\\angle 1+30^{\circ}=90^{\circ} \\\angle 1=90^{\circ}-30^{\circ} \\\angle 1=60^{\circ} \\\angle 1=\angle 5=60^{\circ} \ldots \ldots . . \text { (Alternate interior angles) } \\\angle 9=\angle 4=30^{\circ} \ldots \ldots . . \text { (Alternate interior angles) }\end{array}$
In $\triangle AOB , OA = OB$, then the angles opposite them are equal
$\therefore \angle 9=\angle 7=30^{\circ}$
$\angle 7=\angle 3=30^{\circ}$. $\qquad$ (Alternate interior angles)
In $\triangle A O D, O A=O D$, then the angles opposite them are equal
$\therefore \angle 2=\angle 1=60^{\circ}$
$\angle 2=\angle 6=60^{\circ}$. $\qquad$ (Alternate interior angles)
$\begin{array}{l}\text { In } \triangle A O B, \\\angle 9+\angle 7+\angle A O B=180^{\circ} \ldots \ldots \ldots . \text { (Sum of angles of a triangle) } \\30^{\circ}+30^{\circ}+\angle A O B=180^{\circ} \\60^{\circ}+\angle A O B=180^{\circ} \\\angle A O B=180^{\circ}-60^{\circ} \\\angle A O B=120^{\circ} \\\\\angle A O B=\angle C O D=120^{\circ} \ldots \ldots \ldots . . \text { (Vertically opposite angles) } \\\\\angle A O B+\angle A O D=180^{\circ} \ldots \ldots \ldots . \text { (Linear pair) } \\120^{\circ}+\angle A O D=180^{\circ} \\\angle A O D=180^{\circ}-120^{\circ} \\\angle A O D=60^{\circ} \\\angle A O D=\angle B O C=60^{\circ} \ldots \ldots \ldots . . \text { (Vertically opposite angles) }\end{array}$
Thus, $\angle 1=\angle 5=\angle 2=\angle 6=\angle AOD =\angle BOC =60^{\circ}$.
$\begin{array}{l}\angle A O B=\angle C O D=120^{\circ} \\\angle 9=\angle 4=\angle 7=\angle 3=30^{\circ}\end{array}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Quadrilaterals→Quadrilaterals — all question types→MATHS STD 8 question papers→Gujarat Board STD 8 question papers→Gujarat Board question paper generator→

Similar questions

Find the value of $2 m+\frac{1}{2} n$, if $m$ and $n$ are the solutions of the equations $\frac{m+3}{7-2 m}=\frac{1}{2}$ and $\frac{1}{4}(n+4)=2 n-3$, respectively.

Resolve each of the following quadratic trinomial into factor:
$3+23 y-8 y^2$

A rectangular grassy plot is $112m$ long and $78m$ broad. It has a gravel path $2.5m$ wide all around it on the side. Find the area of the path and the cost of constructing it at $Rs. 4.50$ per square metre.

Solve the following equation and verify your answer: $\frac{2\text{x}+1}{3\text{x}-2}=\frac{5}{9}$

Find the volume, lateral surface area and the total surface area of the cuboid whose dimensions are:
Length $= 24m,$ breadth $= 25\ cm$ and height $= 6m$

$\underline{\\ \ \ \ \text{8}\ \ \text{A} \ \ \text{B}\ \ \text{C}\\\text{-}\ \ \text{A}\ \ \text{B} \ \ \text{C}\ \ \ \text{5}}\\\underline{\ \ \ \ \text{D}\ \ \ 4\ \ \ 8\ \ \ 8}$

Prove that the sum of the angles of a quadrilateral is $360^\circ .$

A classroom is $7\ m$ long, $6\ m$ broad and $3.5\ m$ high. Doors and windows occupy an area of $17\ m^2$. What is the cost of white-washing the walls at the rate of $Rs. 1.50$ per $m ^2$.

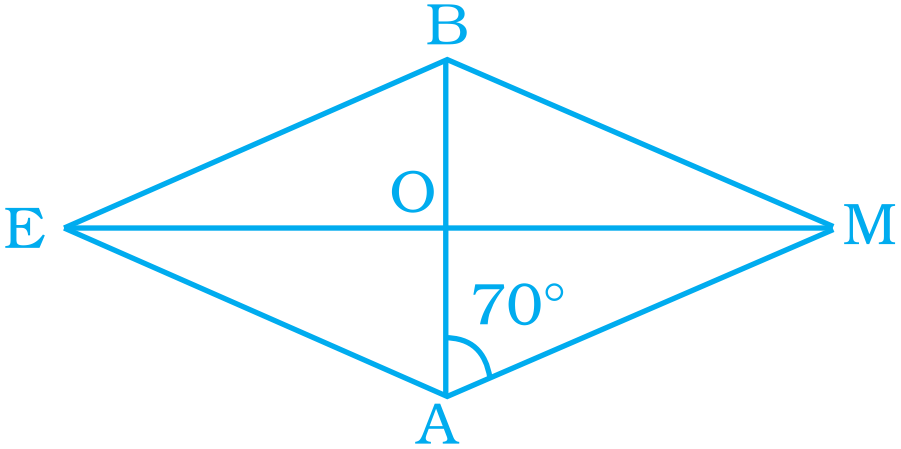

In rhombus $BEAM$, find $\angle\text{AME}\ \text{and}\angle\text{AEM}.$
