MCQ

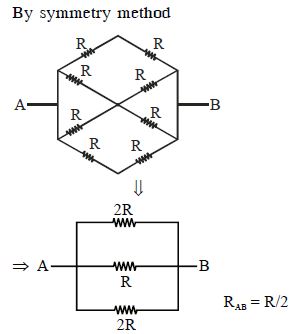

Find out equivalent resistance between $A$ and $B$
- A$R$
- ✓$0.5\,R$
- C$2\,R$
- D$3\,R$
✓
Answer
Correct option: B.
$0.5\,R$
b
