Question
Find the angular separation between the consecutive bright fringes in a Young's double slit experiment with blue-green light of wavelength 500nm. The separation between the slits is 2.0 × 10-3m.
✓
Answer
Given that, $\lambda=500\text{nm}=500\times10^{-9}\text{m}$ and d = 2 × 10-3m
As shown in the figure, angular separation $\theta=\frac{\beta}{\text{D}}=\frac{\lambda\text{D}}{\text{dD}}=\frac{\lambda}{\text{d}}$
So, $\theta=\frac{\beta}{\text{D}}=\frac{\lambda}{\text{d}}=\frac{500\times10^{-9}}{2\times10^{-3}}=250\times10^{-6}$
= 25 × 10-5 radian = 0.014 degree.
As shown in the figure, angular separation $\theta=\frac{\beta}{\text{D}}=\frac{\lambda\text{D}}{\text{dD}}=\frac{\lambda}{\text{d}}$
So, $\theta=\frac{\beta}{\text{D}}=\frac{\lambda}{\text{d}}=\frac{500\times10^{-9}}{2\times10^{-3}}=250\times10^{-6}$
= 25 × 10-5 radian = 0.014 degree.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
When small drops of water are sprayed, why is cooling produced?
Give the dimensional formula for surface energy, moment of inertia, angular velocity and gravitational force.
A person of mass 50kg stands on a weighing scale on a lift. If the lift is descending with a downward acceleration of 9m s–2, what would be the reading of the weighing scale? (g = 10m s–2)
A newly designed thermometer has its lower fixed point and upper fixed point marked 5°C and 95°C respectively. Compute the temperature on this scale corresponding to 50°C.
A sphere starts rolling down an incline of inclination $\theta.$ Find the speed of its centre when it has covered a distance l.
→During an experiment, an ideal gas is found to obey an additional law pV2 = constant. The gas is initially at a temperature T and volume V. Find the temperature when it expands to a volume 2V.
A body of mass 10 g is 6cm performs simple harmonic motion on a long line, its maximum speed is $12 ~\text {cm / second}$. Find the period and maximum potential energy.

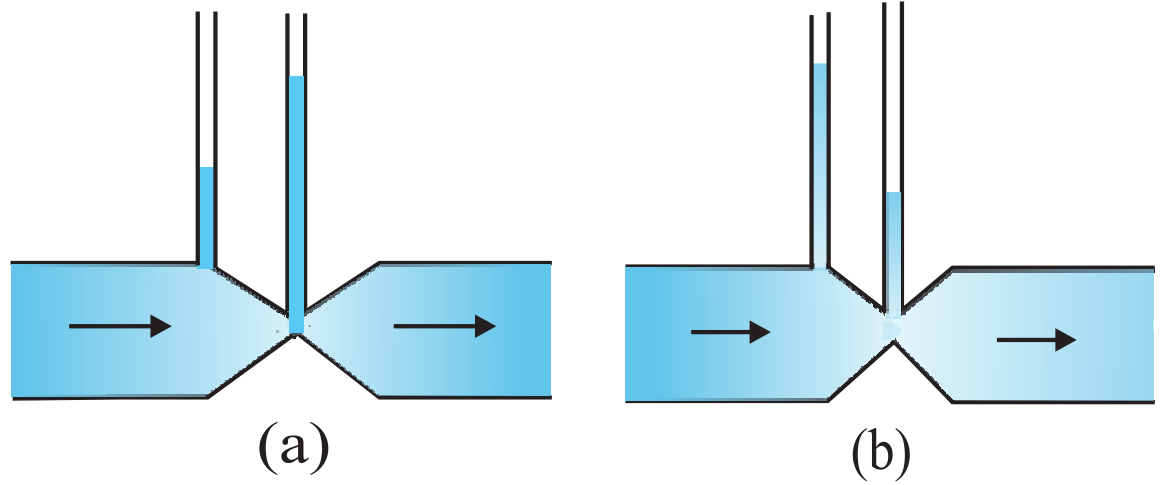

→Figures(a) and (b) refer to the steady flow of a (non viscous) liquid. Which of the two figures is incorrect? Why?
