Trigonometrical Ratios of Standard Angles — MATHEMATICS STD 9 — Question

ICSE BoardEnglish MediumSTD 9MATHEMATICSTrigonometrical Ratios of Standard Angles5 Marks
Question
Find the value of $' y\ '$ if $\sqrt{3}=1.723$.Given your answer correct to $2$ decimal places.

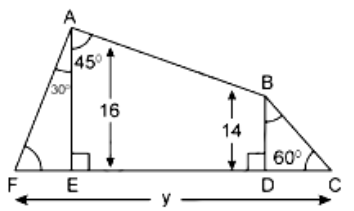

https://pg-data.sgp1.digitaloceanspaces.com/chapter_wise/20822/F50.png" alt="Image" width="250" height="">
✓

Answer

Construction: Draw $BX \perp AE$
Then, $B D=E X=14 \ cm$ and $B X=E D$
$
A X=A E-E X=16-14=2
$
 In right $\triangle AEF$
$ \tan 30^{\circ}=\frac{ FE }{ AE }$
$ \Rightarrow \frac{1}{\sqrt{3}}=\frac{ FE }{16}$
$ \Rightarrow FE =\frac{16}{\sqrt{3}}$
In right $\triangle B D C$,
$\tan 60^{\circ}=\frac{ BD }{ DC }$
$ \Rightarrow \sqrt{3}=\frac{14}{ DC }$
$ \Rightarrow DC =\frac{14}{\sqrt{3}}$
In right $\triangle AXB$,
$\tan 45^{\circ}=\frac{B X}{A X}$
$ \Rightarrow 1=\frac{B X}{2}$
$ \Rightarrow B X=2$
$ \Rightarrow ED = BX =2$
Now,
$y=F C$
$ F E+E D+D C$
$ =\frac{16}{\sqrt{3}}+\frac{14}{\sqrt{3}}+2$
$ =\frac{30+2 \sqrt{3}}{\sqrt{3}}$
$ =\frac{30+3.464}{1.732}$
$ =19.32 .$
