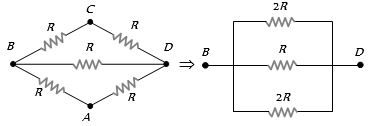

Five equal resistances each of value $R$ are connected in a form shown alongside. The equivalent resistance of the network

ABetween the points $B$ and $D$ is $ R$
BBetween the points $B$ and $D$ is $\frac{R}{2}$
CBetween the points $A$ and $C$ is $R$
DBoth $(b)$ and $(c)$
