Four capacitors are connected as shown in the figure. Their capacities are indicated in the figure. The effective capacitance between points $x$ and $y$ is (in $\mu F$)
Easy
Download our app for free and get started

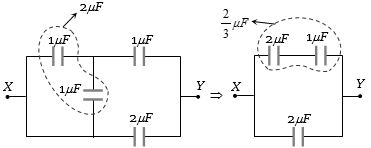

(c) The given circuit can be simplified as follows
$==>$ ${C_{xy}} = \frac{2}{3} + 2 = \frac{8}{3}\,\mu F$
$==>$ ${C_{xy}} = \frac{2}{3} + 2 = \frac{8}{3}\,\mu F$
