MCQ
Four identical rods are stretched by same force. Maximum extension is produced in
- A$L = 10cm,\,\,D = 1\,mm$
- ✓$L = 100\,cm,\,D = \,2mm$
- C$L = 200\,cm,\,D = \,3mm$
- D$L = 300\,cm,\,D = \,4\,mm$
✓
Answer
Correct option: B.
$L = 100\,cm,\,D = \,2mm$
b
(b) $l = \frac{{FL}}{{\pi {r^2}Y}}$ $l \propto \frac{L}{{{r^2}}}$
(b) $l = \frac{{FL}}{{\pi {r^2}Y}}$ $l \propto \frac{L}{{{r^2}}}$
Ratio of $\frac{L}{{{r^2}}}$ is maximum for wire in option $(b).$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
The density of a material in $CGS$ system of units is $4\, g\, cm^{-3}$ . In a system of units in which unit of length is $10\, cm$ and unit of mass is $100 \,g,$ the value of density of material will be
→The top of a lake gets frozen at a place where the surrounding air is at a temperature of $-20\,^oC$. Then
→A stone is projected from the ground with velocity $25\,m/s$. Two seconds later, it just clears a wall $5 \,m$ high. The angle of projection of the stone is ........ $^o$ $(g = 10m/{\sec ^2})$

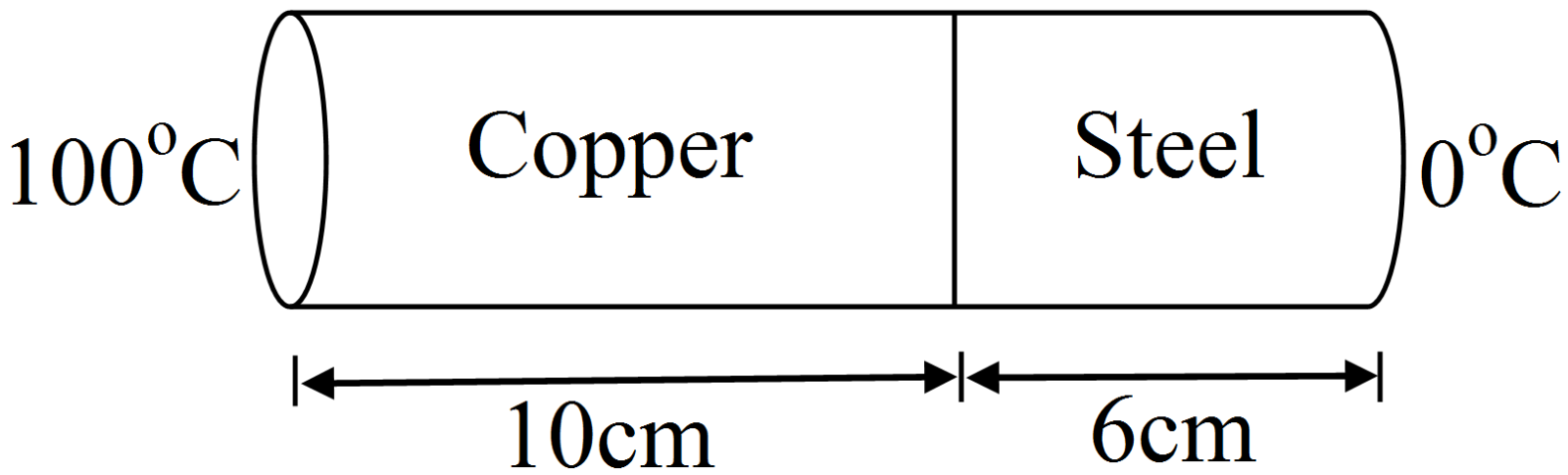

→The coefficient of thermal conductivity of copper is nine times that of steel. In the composite cylindrical bar shown in fig. What will be the temperature at the junction of copper and steel?
