Question
How does Maxwell modify Ampere's circuital law? Explain.
✓
Answer
The dispute in Ampere's circuital law arise because it was assumed that current is discontinuous between the plates of the capacitor. Maxwell gave the assumption of displacement current $\left(I_D\right)$ which states that no conduction current ( $I_c$ ) flows but only displacement current ( $I _{ D }$ ) flows.As the capacitor is charged, it gives rise to flow of displacement current between the plates of the capacitor because electric field increases between the plates of the capacitor. In this way, Ampere's circuital law $\left(\oint \overrightarrow{ B } \cdot \overrightarrow{ dI }=\mu_0 I _{ C }\right.$ ) was written as $\oint \overrightarrow{ B } \cdot \overrightarrow{ dI }=\mu_0\left( I _{ C }+ I _{ D }\right)$.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
→→→→→→→
In hydrogen atom, there is single electron only but many lines in its emission spectrum. How it does? Explain the reason.
Which waves are electromagnetic waves?Which factors are responsible for their production?
Explain how radioactive nuclei can emit $\beta-$particles even though atomic nuclei do not contain these particles? Hence explain why the mass number of radioactive nuclide does not change during $\beta-$decay?
→Two identical particles, each having a charge of 2.0 × 10-4C and mass of 10g, are kept at a separation of 10cm and then released. What would be the speeds of the particles when the separation becomes large?
A bar magnet of magnetic moment 6J/T is aligned at 60° with a uniform external magnetic field of 0·44T. Calculate (a) the work done in turning the magnet to align its magnetic moment (i) normal to the magnetic field, (ii) opposite to the magnetic field, and (b) the torque on the magnet in the final orientation in case (ii).
What is meant by nuclear mass defect?
A heating element using nichrome connected to a 230 V supply draws an initial current of 4.6 A which settles after a few seconds to a steady value of 2.3 A . What is the steady temperature of the heating element if the room temperature is $27^{\circ} C$. [ $\left.\alpha=1.7 \times 10^{-4}{ }^{\circ} C ^{-1}\right]$

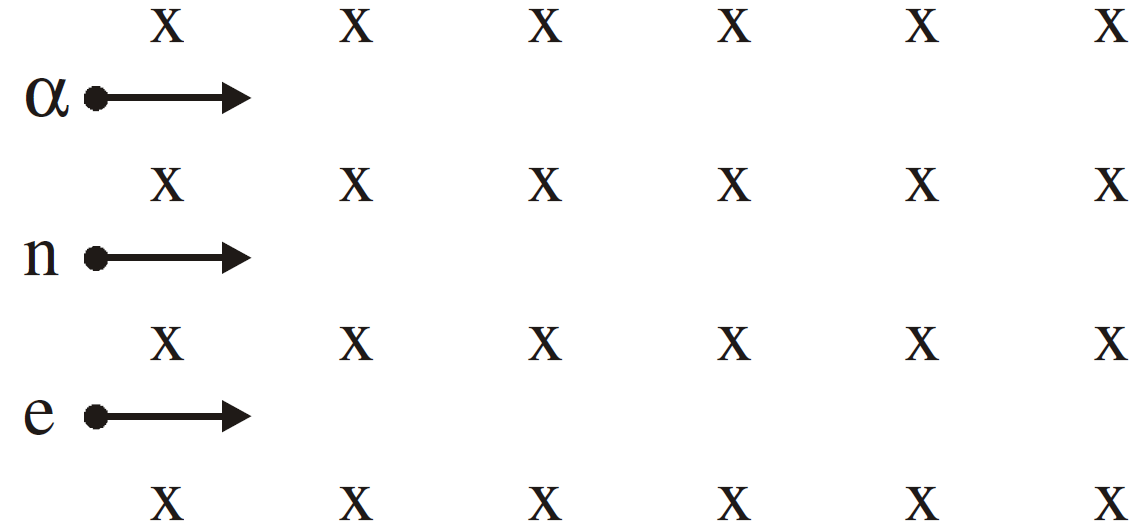

→Write the expression for the magnetic force acting on a charged particle moving with velocity n in the presence of magnetic field B. A neutron, an electron and an alpha particle moving with equal velocities, enter a uniform magnetic field going into the plane of the paper as shown. Trace their paths in the field and justify your answer.
