Question
How many time constants will elapse before the current in a charging RC circuit drops to half of its initial value? Answer the same question for a discharging RC circuit.
✓
Answer
$\frac{\text{Q}}{2}=\text{Q}\Big(1-\text{e}^{\frac{-\text{t}}{\text{CR}}}\Big)$
$\Rightarrow\frac{1}{2}=\Big(1-\text{e}^{\frac{-\text{t}}{\text{CR}}}\Big)$
$\Rightarrow\text{e}^{\frac{-\text{t}}{\text{CR}}}=\frac{1}{2}$
$\Rightarrow\frac{\text{t}}{\text{RC}}=\log2\Rightarrow\text{n}=0.69.$
$\Rightarrow\frac{1}{2}=\Big(1-\text{e}^{\frac{-\text{t}}{\text{CR}}}\Big)$
$\Rightarrow\text{e}^{\frac{-\text{t}}{\text{CR}}}=\frac{1}{2}$
$\Rightarrow\frac{\text{t}}{\text{RC}}=\log2\Rightarrow\text{n}=0.69.$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions

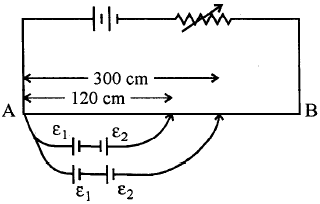

For the potentiometer circuit shown in the given figure, points X and Y reprensent the two terminals of an unknown emf E'. A student observed that when the jockey in moved from the end A to the end B of the potentiometer wire, the deflection in the galvanometer remains in the same direction.
What may be the two possible faults in the circuit that could result in this obsevation?
If the galvanometer deflection at the end B is (i) more, (ii) less, than that at the end A, which of the two faults, listed above, would be there in the circuit?
Give reasons in support of your answer in each case.
What may be the two possible faults in the circuit that could result in this obsevation?If the galvanometer deflection at the end B is (i) more, (ii) less, than that at the end A, which of the two faults, listed above, would be there in the circuit?
Give reasons in support of your answer in each case.
- Identify the part of the electromagnetic spectrum used in $(i)$ radar and $(ii)$ eye surgery. Write their frequency range.
- Prove that the average energy density of the oscillating electric field is equal to that of the oscillating magnetic field.
A closely wound solenoid $80 \ cm$ long has $5$ layers of windings of $400$ turns each. The diameter of the solenoid is $1.8 \ cm.$ If the current carried is $8.0 A,$ estimate the magnitude of $B$ inside the solenoid near its centre.
→Can an electromagnetic wave be polarised?
The potential difference between the terminals of a battery of emf 6.0V and internal resistance $1\Omega$ drops to 5.8V when connected across an external resistor. Find the resistance of the external resistor.
→A source of $ac$ voltage $v = v_0 \sin\omega t,$ is connected across a pure inductor of inductance $L$. Derive the expressions for the instantaneous current in the circuit. Show that average power dissipated in the circuit is zero.
→A wheel of moment of inertia $0.500\ kg-m^2$ and radius $20.0\ cm$ is rotating about its axis at an angular speed of $20.0\ rad/s.$ It picks up a stationary particle of mass $200g$ at its edge. Find the new angular speed of the wheel.
→What are eddy currents? How are these produced? In what sense are eddy currents considered undesirable in a transformer and how are these reduced in such a device?
Explain electric potential energy difference and discuss its important points.
$(a)$ Obtain the expression for the magnetic energy stored in a solenoid in terms of magnetic field $B,$ area $A$ and length $l$ of the solenoid. $(b)$ How does this magnetic energy compare with the electrostatic energy stored in a capacitor?
→
