MODEL PAPER 2 — Physics STD 12 Science — Question

Bihar BoardEnglish MediumSTD 12 SciencePhysicsMODEL PAPER 23 Marks
Question
i. Define the term self-inductance and write its S.I. unit.
ii. Obtain the expression for the mutual inductance of two long co-axial solenoids $S_1$ and $S_2$ wound one over the other, each of length $L$ and radii $r_1$ and $r_2$ and $n_1$ and $n_2$ number of turns per unit length, when a current $I$ is set up in the outer solenoid $S _2$.
✓

Answer

i. Self-Inductance is the property by which an opposing induced emf is produced in a coil due to a change in current, or magnetic flux, linked with the coil.
ii. In this question, a long co-axial solenoids $S_1$ and $S_2$ wound one over the other, each of length $L$ and radii $r_1$ and $r_2$ and $n_1$ and $n _2$ number of turns per unit length, when a current I is set up in the outer solenoid $S _2$.

Let a current $l_2$ flow in the secondary coil
$\therefore B _2=\frac{\mu_0 N_2 i_2}{t}$
$\begin{array}{l}\therefore \text { Flux linked with the primary coil }=\frac{\mu_0 N_2 N_1 A_1 i_2}{l} \\ = M _{12} i _2\end{array}$
Hence, $M _{12}=\frac{\mu_0 N_2 N_1 A_2}{l}$
$\mu_0 n_2 n_1 A_1 l\left(n_1=\frac{N_1}{l} ; n_2=\frac{N_2}{l}\right)$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from MODEL PAPER 2→MODEL PAPER 2 — all question types→Physics STD 12 Science question papers→Bihar Board STD 12 Science question papers→Bihar Board question paper generator→

Similar questions

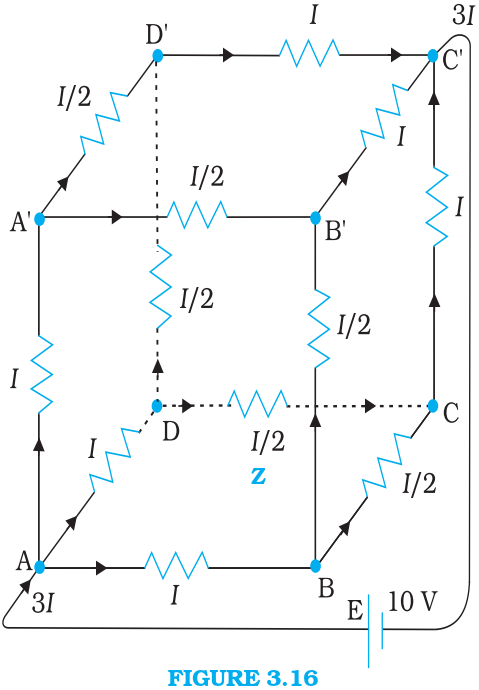

A battery of $10 V$ and negligible internal resistance is connected across the diagonally opposite corners of a cubical network consisting of 12 resistors each of resistance $1 \Omega$ (Fig. 3.16). Determine the equivalent resistance of the network and the current along each edge of the cube.
→
