In 1^ st case, Carnot engine operates between temperatures 300 ,K… - Vidyadip

MCQ

In $1^{\text {st }}$ case, Carnot engine operates between temperatures $300\,K$ and $100\,K$. In $2^{\text {nd }}$ case, as shown in the figure, a combination of two engines is used. The efficiency of this combination (in $2^{\text {ad }}$ case) will be.

✓
same as the $1^{\text {st }}$ case
B
always greater than the $1^{\text {st }}$ case
C
always less than the $1^{\text {st }}$ case
D
may increase or decrease with respect to the $1^{\text {st }}$ case

✓

Answer

Correct option: A.

same as the $1^{\text {st }}$ case

a
First case : $\eta=1-\frac{100}{300}=\frac{2}{3}$

Second case : $\eta_{\text {net }}=\eta_{1}+\eta_{2}-\eta_{1} \eta_{2}$

$\eta_{1}=1-\frac{200}{300}=\frac{1}{3}$

$\eta_{2}=1-\frac{100}{200}=\frac{1}{2}$

$\eta_{\text {net }}=\frac{1}{3}+\frac{1}{2}-\frac{1}{6}=\frac{2}{3}$

$\eta$ (first case) $=\eta$ (second case)

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 11. thermodynamics→11. thermodynamics — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

$Assertion :$ Sound travels faster in solids than gases.
$Reason :$ Solids possess greater density than gases.

$A U-$ tube having horizontal arm of length $20$ $cm$, has uniform cross-sectional area $=1\ cm^2$. It is filled with water of volume $60$ $cc$. What volume of a liquid of density $4$ $g/cc$ should be poured from one side into the $U -$ tube so that no water is left in the horizontal arm of the tube ........ $cc$ ?

A ball is suspended on a thread from the ceiling of a car. The brakes are applied and the speed of car changes from $5\, m/sec$ to $5/3\, m/sec$ during the time interval of $3\, seconds$. The angle that the thread will deviate from vertical

The radius and mass of earth are increased by $0.5\%$. Which of the following statements are true at the surface of the earth

An aeroplane is flying horizontally with a velocity of $600\, km/h$ at a height of $1960\, m$. When it is vertically at a point $A$ on the ground, a bomb is released from it. The bomb strikes the ground at point $B$. The distance $AB$ is

An engine operates by taking a monatomic ideal gas through the cycle shown in the figure. The percentage efficiency of the engine is close to $.......\%$

The kinetic energy of a body of mass $3 \,kg$ and momentum $2 \,N-s$ is

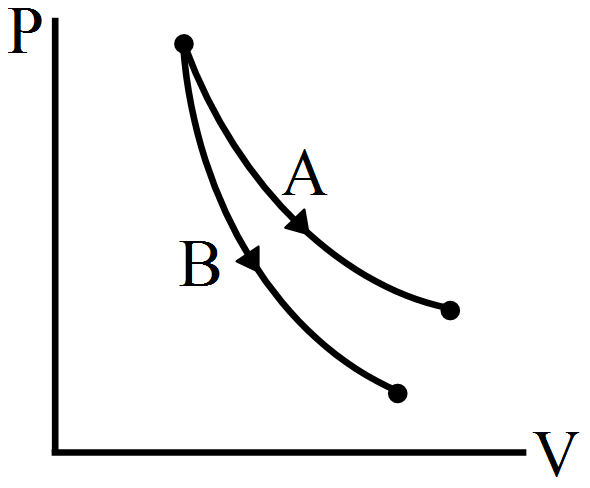

Consider the processes A and B shown in the figure. It is possible that:
