MCQ
In a single slit diffraction experiment first minima of $\lambda_1=6000 Å$ coincides with first maxima for wavelength $\lambda_2$, then $\lambda_2$ is :
- ✓4000 Å
- B5000 Å
- C4800 Å
- D5500 Å
✓
Answer
Correct option: A.
4000 Å
(A) 4000 Å,
For first minima of $\lambda_1, a \sin \theta=1 . \lambda_1$
For first maxima of $\lambda_2$, a $\sin \theta=3 / 2 \lambda_2$
$\therefore \quad \lambda_1=\frac{3}{2} \lambda_2$
or $\quad \lambda_2=\frac{2}{3} \times \lambda_1=\frac{2}{3} \times 6000 \Rightarrow 4000 Å$
For first minima of $\lambda_1, a \sin \theta=1 . \lambda_1$
For first maxima of $\lambda_2$, a $\sin \theta=3 / 2 \lambda_2$
$\therefore \quad \lambda_1=\frac{3}{2} \lambda_2$
or $\quad \lambda_2=\frac{2}{3} \times \lambda_1=\frac{2}{3} \times 6000 \Rightarrow 4000 Å$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Binding energy of a certain nucleus is $18 \times 10^8 \mathrm{~J}$. How much is the difference between total mass of all the nucleons and nuclear mass of the given nucleus:
→When $x\, grams$ of steam at $100\,^oC$ is mixed with $y\,grams$ of ice at $0\,^oC$ , We obtain $(x + y)\,grams$ of water at $100\,^oC$ . What is the ratio $y/x$ ?
→When an unpolarized light of intensity, $I_0$ is incident on a polarizing sheet, the intensity of light which does not get transmitted is
→In ballistic galvanometer, the frame on which the coil is wound is non-metallic to
A long straight wire carrying current of $30\,A$ is placed in an external uniform magnetic field of induction $4 \times 10^{-4}$ $T$. The magnetic field is acting parallel to the direction of current. The magnitude of the resultant magnetic induction in tesla at a point $2.0\, cm$ away from the wire is
→In which of the following devices, the eddy current effect is not used ?
The force constants of two springs are ${K_1}$ and ${K_2}$. Both are stretched till their elastic energies are equal. If the stretching forces are ${F_1}$ and ${F_2}$, then ${F_1}:{F_2}$ is

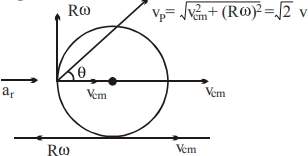

→$A$ disc of radius $R$ is rolling purely on a flat horizontal surface, with a constant angular velocity. The angle between the velocity and acceleration vectors of point $P$ is
