Question
In each case (a) and (b), draw reflected rays for the given incident rays and mark focus by the symbol F.
✓
Answer

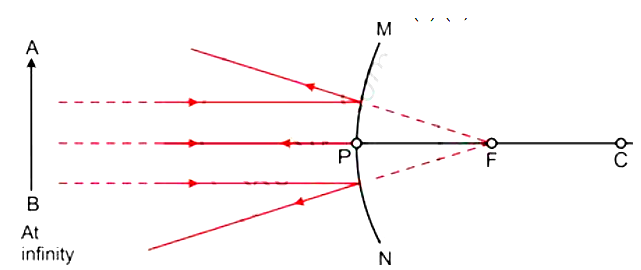

(a)

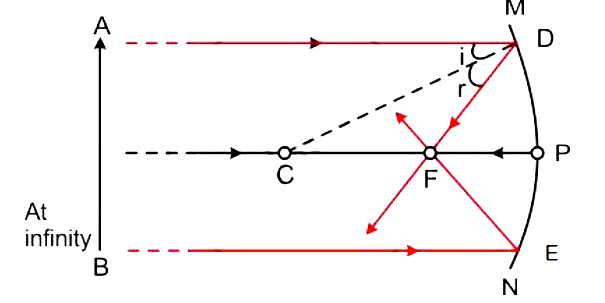

(b)
(b)
