A real and enlarged image can be obtained by using a
- AConvex mirror
- BPlane mirror
- ✓Concave mirror
- DEither convex or plane mirror.
Answer: C.
View full solution →Question types
Reflection of Light question types
102 questions across 5 question groups — pick any mix to generate a PHYSICS paper with step-by-step answer keys.
102
Questions
5
Question groups
5
Question types
01
MCQ
8 Q→02[1 Mark Question Answer]
28 Q→03[2 Mark Question Answer]
24 Q→04[3 Mark Question Answer]
24 Q→05[5 Mark Question Answer]
18 Q→Sample Questions
Reflection of Light questions
One sample from each question group in this chapter. Select any group above to see the full set with answer keys.
The image formed by a convex mirror is
- ✓Erect and diminished.
- BErect and enlarged.
- CInverted and diminished.
- DInverted and enlarged.
Answer: A.
View full solution →For an incident ray directed towards centre of curvature of a spherical mirror the reflected ray:
- ✓Retraces its path
- BPasses through the focus
- CPasses through the pole
- DBecomes parallel to the principal axis.
Answer: A.
View full solution →In the barber's shop, two plane mirrors are placed :
- APerpendicular to each other
- ✓Parallel to each other
- CAt an angle $60^\circ $ between them
- DAt angle $45^\circ $ between them
Answer: B.
View full solution →Two plane mirrors are placed making an angle $60^\circ $ in between them. For an object placed in between the mirrors, the number of images formed will be :
- A$3$
- B$6$
- ✓$5$
- Dinfinite
Answer: C.

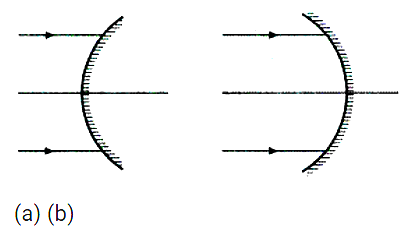

View full solution →Name the mirrors shown in Figure (a) and (b).
State the direction of incident ray which after reflection from a spherical mirror retraces its path. Give a reason to your answer.
State the kind of mirror used
(a) By a dentist,
(b) As a search-light reflector.
(a) By a dentist,
(b) As a search-light reflector.
The focal length of a concave mirror is 10 cm. Find its radius of curvature.
How is the focal length of a spherical mirror related to its radius of curvature?
Define the terms pole, principal axis and centre of curvature with reference to a spherical mirror.
Which mirror will you prefer to use as a rear view mirror in a car : plane mirror or convex mirror? Give one reason.
(a) When a concave mirror is used as a shaving mirror, where is the person's face in relation to the focus of mirror?
(b) State three characteristics of the image seen in part (a).
(b) State three characteristics of the image seen in part (a).
State two uses of a concave mirror.
Upto what maximum distance from a concave mirror, the image can be obtained? What will be the location of object for it?
When an object of height 1 cm is kept at a distance 4 cm from a concave mirror, its erect image of height 1.5 cm is formed at a distance 6 cm behind the mirror. Find the focal length of mirror, by drawing.
A point light source is kept in front of a convex mirror at a distance of 40 cm. The focal length of the mirror is 40 cm. Find the position of image by drawing.
An object 5 cm high is placed at a distance 60 cm in front of a concave mirror of focal length 10 cm. Find the position and size of the image.
At what distance from a concave mirror of focal length 25 cm should an object be placed so that the size of image is equal to the size of the object.
An object of height 2 cm is placed at a distance of 20 cm in front of a concave mirror of a focal length of 12 cm. Find the position, size, and nature of the image.
An object of length 4 cm is placed in front of a concave mirror at distance 30 cm. The focal length of mirror is 15 cm.
- Where will the image form?
- What will be the length of image?
In each case (a) and (b), draw reflected rays for the given incident rays and mark focus by the symbol F.
Explain the meaning of the terms focus and focal length in case of a convex mirror, with the help of suitable ray diagram.
Define the terms focus and focal length of a concave mirror. Draw diagram to illustrate your answer.
Name the spherical mirror which (i) diverges (ii) converges the beam of light incident on it. Justify your answer by drawing a ray diagram in each case.
