In the circuit as shown in the figure the effective capacitance between $A$ and $B$ is........$\mu \,F$
Easy
Download our app for free and get started

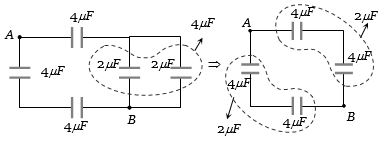

(c) The given circuit can be simplified as follows
Equivalent capacitance between $A$ and $B$ is $C_{AB}$ = $4\, µF$
Equivalent capacitance between $A$ and $B$ is $C_{AB}$ = $4\, µF$
