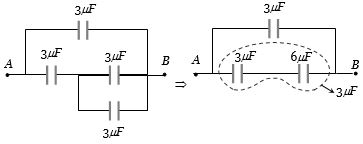

In the circuit shown in figure, each capacitor has a capacity of $3\,\mu F$. The equivalent capacity between $A$ and $B$ is.......$\mu F$
Medium
Download our app for free and get started
(d) $ C_{AB} = 5\,µF$
