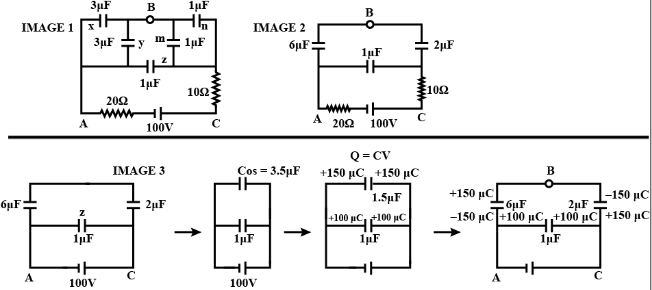

In the figure below, what is the potential difference between the points $A$ and $B$ and between $B$ and $C$ respectively in steady state
  • A$V_{AB} = V_{BC} = 100\, V$
  • B$V_{AB} = 75\,V$ , $V_{BC} = 25\, V$
  • C$V_{AB} = 25\,V$ , $V_{BC} = 75\, V$
  • D$V_{AB} = V_{BC} = 50\, V$
