The plates of a parallel plate condenser are pulled apart with a velocity $v$. If at any instant their mutual distance of separation is $d$, then the magnitude of the time of rate of change of capacity depends on $d$ as follows
Diffcult
Download our app for free and get started
(b)$C = \frac{{{\varepsilon _0}A}}{x};$
$\frac{{dC}}{{dt}} = {\varepsilon _0}A\frac{d}{{dt}}\left( {\frac{1}{x}} \right)$$ = \frac{{ - {\varepsilon _0}A}}{{{x^2}}}\left( {\frac{{dx}}{{dt}}} \right) = \frac{{ - {\varepsilon _0}A}}{{{d^2}}}\left( {\frac{{dx}}{{dt}}} \right)$
$==>$ $\left| {\frac{{dC}}{{dt}}} \right| = \frac{{{\varepsilon _0}A}}{{{d^2}}}v$ i.e. $\left| {\frac{{dC}}{{dt}}} \right| \propto \frac{1}{{{d^2}}}$
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1Five similar condenser plates, each of area $A$, are placed at equal distance apart and are connected to a source of $e.m.f.$ $V$ as shown in the following diagram. The charge on the plates $1$ and $4$ will be:-View Solution
- 2A slab of dielectric constant $K$ has the same crosssectional area as the plates of a parallel plate capacitor and thickness $\frac{3}{4}\,d$, where $d$ is the separation of the plates. The capacitance of the capacitor when the slab is inserted between the plates will be.(Given $C _{0}=$ capacitance of capacitor with air as medium between plates.)View Solution
- 3$64$ small drops of mercury, each of radius $ r$ and charge $q$ coalesce to form a big drop. The ratio of the surface density of charge of each small drop with that of the big drop isView Solution

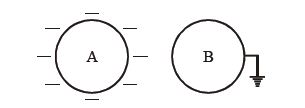

- 4Two concentric spheres $A$ and $B$ are kept very near to each other. $A$ is negatively charged and $B$ is earthed. The true statement isView Solution
