In the figure shown, the effective capacitance between the points $A$ and $B$, if each has capacitance $C$, is
Easy
Download our app for free and get started

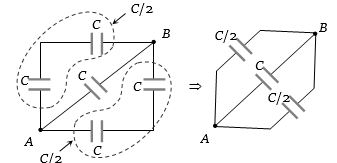

(a) The given circuit can be simplified as follows
Equivalent capacitance between $A$ and $B$ is $C_{AB} = 2 \,C$
Equivalent capacitance between $A$ and $B$ is $C_{AB} = 2 \,C$
