Q: In the figure, the value of resistors to be connected between $C$ and $D$ so that the resistance of the entire circuit between $A$ and $B$ does not change with the number of elementary sets used is

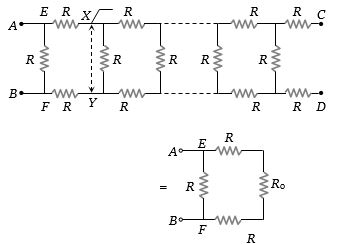

b (b) Cut the series from $XY$ and let the resistance towards right of $XY$ be ${R_0}$ whose value should be such that when connected across $AB$ does not change the entire resistance. The combination is reduced to as shown below. The resistance across $EF, = {R_{EF}} = ({R_0} + 2R)$ Thus ${R_{AB}} = \frac{{({R_0} + 2R)R}}{{{R_0} + 2R + R}} = \frac{{{R_0}R + 2{R^2}}}{{{R_0} + 3R}} = {R_0}$ $ \Rightarrow R_0^2 + 2R{R_0} - 2{R^2} + 0 \Rightarrow {R_0} = R(\sqrt 3 - 1)$

SECTION - A [PHYSICS MCQ]

GSEB - English Medium

In the figure, the value of resistors to be connected between $C$ and $D$ so that the resistance of the entire circuit between $A$ and $B$ does not change with the number of elementary sets used is

A$R$
B$R(\sqrt 3 - 1)$
C$3 R$
D$R(\sqrt 3 + 1)$
