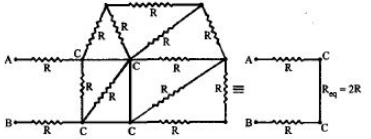

In the given circuit all resistances are of value R,ohm each. The equivalent resistance between A and B is

Q: In the given circuit all resistances are of value $R\,ohm$ each. The equivalent resistance between $A$ and $B$ is

a ${\mathrm{R}_{\text {scries }}=\mathrm{R}_{1}+\mathrm{R}_{2}+\ldots \ldots+\mathrm{R}_{\mathrm{n}}} $ ${\frac{1}{\mathrm{R}_{\mathrm{parallel}}}=\frac{1}{\mathrm{R}_{1}}+\frac{1}{\mathrm{R}_{2}}+\ldots \ldots+\frac{1}{\mathrm{R}_{\mathrm{n}}}}$

SECTION - A [PHYSICS MCQ]

GSEB - English Medium

In the given circuit all resistances are of value $R\,ohm$ each. The equivalent resistance between $A$ and $B$ is

A$2R$
B$\frac{{5R}}{2}$
C$\frac{{5R}}{3}$
D$3R$

JEE MAIN 2018, Diffcult

STD 11 Science
JEE
STD 12 - 3. current electricity
Physics
