In the given pairs of triangles, find which pair of triangles are similar. State the similarity criterior and write the similarity relation in symbolic from.
Download our app for free and get started
In $\triangle\text{EFD}$ and $\triangle\text{PQR}$
FE = 2cm, FD = 3cm, ED = 2.5cm
PQ = 4cm, PR = 6cm, QR = 5cm
$\Rightarrow\frac{\text{PQ}}{\text{FE}}=\frac{\text{PR}}{\text{FD}}=\frac{\text{QR}}{\text{ED}}$
$\therefore\triangle\text{FED}\sim\triangle\text{PQR}$ (SSS similarity)
FE = 2cm, FD = 3cm, ED = 2.5cm
PQ = 4cm, PR = 6cm, QR = 5cm
$\Rightarrow\frac{\text{PQ}}{\text{FE}}=\frac{\text{PR}}{\text{FD}}=\frac{\text{QR}}{\text{ED}}$
$\therefore\triangle\text{FED}\sim\triangle\text{PQR}$ (SSS similarity)
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1In the given figure, $DE || BC$. If $DE = 3\ cm$, $BC = 6\ cm$ and $\text{ar}(\triangle\text{ADE})=15\text{cm}^2,$ find the area of $\triangle\text{ABC}.$View Solution
- 2View SolutionA vertical pole of lenght 7.5m casts a shadow 5m long on the ground and at the same time a tower casts a shadow 24m long. Find the height of the tower.
- 3In a $\triangle\text{ABC},\text{AD}$ is the bisector of $\angle\text{A}.$ If AB = 5.6cm, BD = 3.2cm and BC = 6cm, find AC.View Solution
- 4In $\triangle\text{ABC},\text{AB}=\text{AC}.$ Side BC is produced to D. prove thatView Solution
$(\text{AD}^2-\text{AC}^2)=\text{BD}.\text{CD}$

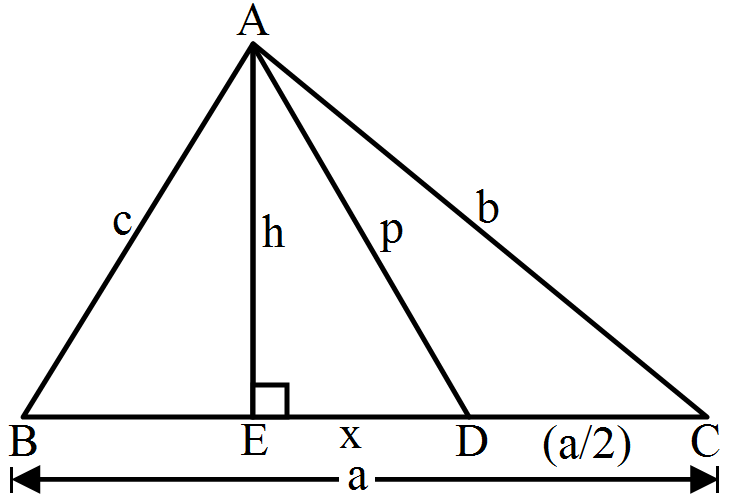

- 5In the given figure, D is the midpoint of side BC and $\text{AE}\perp\text{BC}.$ If BC = a, AC = b, AB = c, ED = x, AD = p and AE = h, prove that.View Solution
