Semiconductors and Semiconductor Devices — Physics STD 11 Science — Question

Rajasthan BoardEnglish MediumSTD 11 SciencePhysicsSemiconductors and Semiconductor Devices5 Marks
Question
Let $\text{X}=\overline{\text{ABC}}+\overline{\text{BCA}}+\overline{\text{CAB}}.$ Evaluate X for:

  1. $\text{A}=1,\text{B}=0,\text{C}=1$

  2. $\text{A}=\text{B}=\text{C}=1$

  3. $\text{A}=\text{B}=\text{C}=0$

✓

Answer

Given,

Output $\text{X}=\overline{\text{ABC}}+\overline{\text{BCA}}+\overline{\text{CAB}}$

  1. $\text{A}=1,\text{B}=0,\text{C}=1$

$\text{X}=1.\Big(\overline{0.1}\Big)+0\Big(\overline{1.1}\Big)+1\Big(\overline1.0\Big)$

$=1.\bar{0}+0.\bar{1}+1.\bar{0}$

$=1.1+0.0+1.1$

$=1+0+1$

$=1+1$

$=1$

  1. $\text{A}=\text{B}=\text{C}=1$

$\text{X}=1\Big(\overline{1.1}\Big)+1\Big(\overline{1.1}\Big)+1\Big(\overline{1.1}\Big)$

$=1.\bar{1}+1.\bar{1}+1.\bar{1}$

$=1.0+1.0+1.0$

$=0+0+0$

$=0$

  1. $\text{A}=\text{B}=\text{C}=0$

$\text{X}=0\Big(\overline{0.0}\Big)+0\Big(\overline{0.0}\Big)+0\Big(\overline{1.1}\Big)$

$=0.\bar{0}+0.\bar{0}+0.\bar{0}$

$=0.1+0.1+0.1$

$=0+0+0$

$=0.$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Semiconductors and Semiconductor Devices→Semiconductors and Semiconductor Devices — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

A long wire carrying a current i is bent to form a plane angle $\alpha.$ Find the magnetic field B at a point on the bisector of this angle situated at a distance x from the vertex.
→

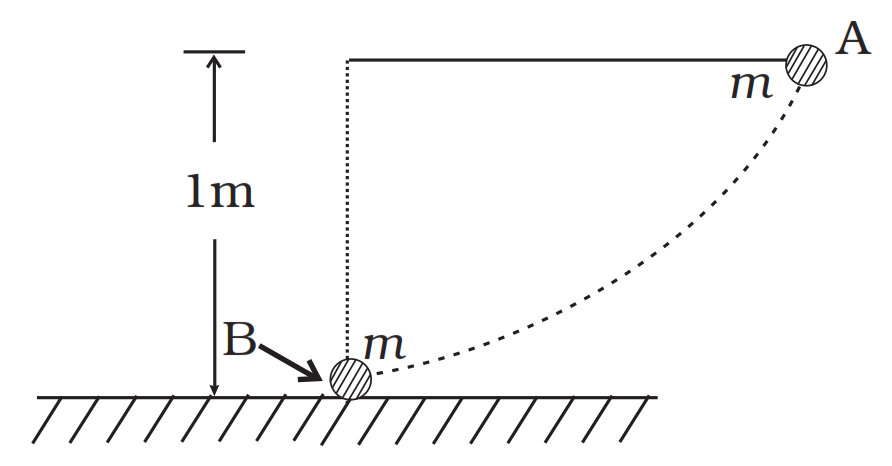

The bob A of a pendulum released from horizontal to the vertical hits another bob B of the same mass at rest on a table as shown in.
