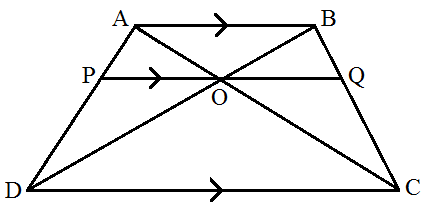

O is the point of intersection of the diagonals AC and BD of a trapezium ABCD with AB || DC. Through O, a line segment PQ is drawn parallel AB meeting AD in P and BC in Q. Prove that PO = QO.
Download our app for free and get started
Given: In trapezium ABCD, AB || DCDiagonals BD and AC intersect at O and POQ || DC || AB
To Prove: PO = QO
Proof: In $\triangle\text{ABD},$
$\text{PO}\parallel\text{AB}$ [Given]
$\therefore\frac{\text{AP}}{\text{PD}}=\frac{\text{BO}}{\text{OD}}\ .....(\text{i})$
Similarly, in $\triangle\text{BDC},$
$\text{OQ}\parallel\text{DC}$
$\therefore\frac{\text{BO}}{\text{OD}}=\frac{\text{BQ}}{\text{QC}}\ .....(\text{ii})$
From (i) and (ii), we have
$\frac{\text{AP}}{\text{PD}}=\frac{\text{BQ}}{\text{QC}}$
$\Rightarrow\frac{\text{AP}}{\text{PD}}+1=\frac{\text{BQ}}{\text{QC}}+1$ [Adding 1 on both sides]
$\Rightarrow\frac{\text{AP+PD}}{\text{PD}}=\frac{\text{BQ+QC}}{\text{QC}}$
$\Rightarrow\frac{\text{AD}}{\text{PD}}=\frac{\text{BC}}{\text{QC}}\text{ or }\frac{\text{PD}}{\text{AD}}=\frac{\text{QC}}{\text{BC}}\ .....(\text{iii})$
In $\triangle\text{DOP}$ and $\triangle\text{DBA},$
$\text{AB}\parallel\text{PO}$ [Given]
$\therefore\angle\text{DPO}=\angle\text{DAB}$ [Corresponding angles]
$\therefore\angle\text{DOP}=\angle\text{DBA}$ [Corresponding angles]
$\therefore\triangle\text{DOP}\sim\triangle\text{DBA}$
$\Rightarrow\frac{\text{PO}}{\text{AB}}=\frac{\text{DP}}{\text{DA}}\ .....(\text{iv})$
Similarly, $\triangle\text{COQ}\sim\triangle\text{CAB}$ [By AA similarity criterion]
$\therefore\frac{\text{OQ}}{\text{AB}}=\frac{\text{QC}}{\text{BC}}\ .....(\text{v})$
From (iii), (iv) and (v), we have
$\frac{\text{PO}}{\text{AB}}=\frac{\text{OQ}}{\text{AB}} $
$\Rightarrow\text{PO}={\text{OQ}}$
Hence, proved.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1In a quadrilateral ABCD, $\angle\text{A}+\angle\text{D}=90^\circ.$ Prove that $AC^2 + BD^2 = AD^2 + BC^2.$View Solution
[Hint: Produce AB and DC to meet at E] - 2In a $\triangle\text{PQR},\text{PR}^2-\text{PQ}^2=\text{QR}^2$ and M is a point on side PR such that $\text{QM}\perp\text{PR}$ Provr that- $QM^2 = PM \times MR.$View Solution
- 3View SolutionABCD is a trapezium in which AB || DC and P and Q are points on AD and BC, respectively such that PQ || DC. If PD = 18cm, BQ = 35cm and QC = 15cm, find AD.

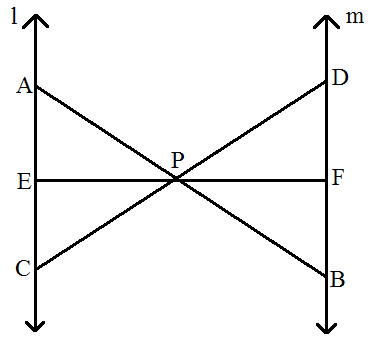

- 4$\text{l}\parallel\text{m}$ and line segments AB, CD and EF are concurrent at point P. Proved that $\frac{\text{AE}}{\text{BF}}=\frac{\text{AC}}{\text{BD}}=\frac{\text{CE}}{\text{FD}}.$View Solution
- 5View SolutionA flag pole 18m high casts a shadow 9.6m long. Find the distance of the top of the pole from the far end of the shadow.
- 6View SolutionProve that the area of the semicircle drawn on the hypotenuse of a right angled triangle is equal to the sum of the areas of the semicircles drawn on the other two sides of triangle.
- 7View Solutionif AB || DC and AC and PQ intersect each other at the point O, prove that OA × CQ = OC × AP
- 8ABC is a triangle right angled at B and $\text{BD}\perp\text{AC}.$ If AD = 4cm, and CD = 5cm, find BD and AB.View Solution
- 9View SolutionProve that if a line is drawn parallel to one side of a triangle to intersect the other two sides, then the two sides are divided in the same ratio.

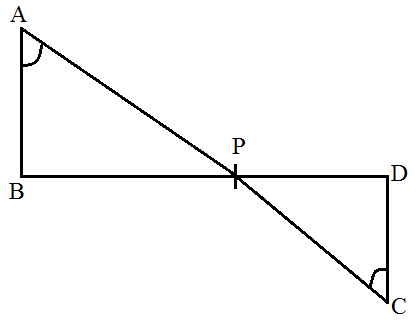

- 10In $\angle\text{A}=\angle\text{C},$ AB = 6cm, BP = 15cm, AP = 12cm and CP = 4cm, then find the lengths of PD and CD.View Solution
