Question
Periscope:
✓
Answer
- Take a cardboard box. Make slits in the top and bottom sides of the box and place two mirrors so that they make an angle of 45° with the sides of the box and are parallel to each other. Fix them with a sticking tape.
- Make two windows of 1 inch each near the two mirrors. Now see through the bottom window.
- Make note of what you see.

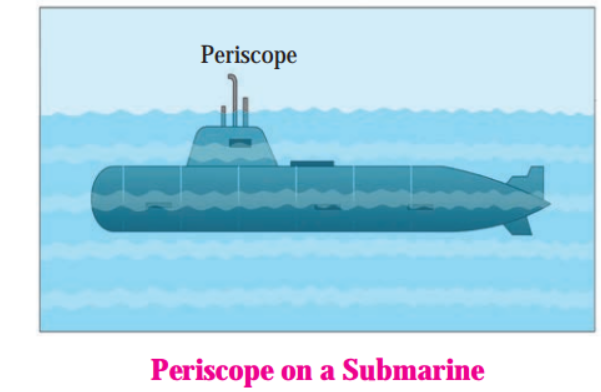

From the bottom window, one can see what is in front of the top window. This device is called a periscope. This is used in submarines to see objects above the surface of water. It is also used to observe and keep a watch on the objects or persons on the ground from an underground bunker. The kaleidoscope and periscope both use the properties of reflection of light.

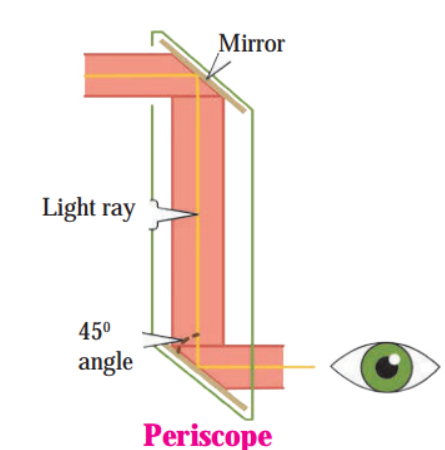

[Note: In a periscope, the angle of incidence is 45° and the two plane mirrors are parallel to each other. Hence, the emergent ray is parallel to the incident ray.]
