Question
Sketch the magnetic field lines for a current-carrying circular loop near its centre. Replace the loop by an equivalent magnetic dipole and sketch the magnetic field lines near the centre of the dipole. Identify the difference.
✓
Answer
As in loop magnetic field lines pass thorough the center but in case of magnet dipole the magnetic field lines does not pass through center or even meet at center point.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
In a potentiometer arrangement for determining the emf of a cell, the balance point of the cell in open circuit is 350cm. When a resistance of $9\Omega$ is used in the external circuit of the cell, the balance point shifts to 300cm. Determine the internal resistance of the cell.
→Show that the electrostatic potential is constant throughout the volume of the conductor and has the same value (as inside) on its surface.
If the intensity of light falling on a metal plate is doubled, what will be the effect on photocurrent and maximum kinetic energy of emitted photoelectrons?
A circular wire-loop of radius a carries a total charge Q distributed uniformly over its length. A small length dL of the wire is cut off. Find the electric field at the centre due to the remaining wire.
A circular coil of $25$ turns and radius $6.0 \ cm,$ carrying a current of $10 A,$ is suspended vertically in a uniform magnetic field of magnitude $1.2 T$. The field lines run horizontally in the plane of the coil. Calculate the force and the torque on the coil due to the magnetic field. In which direction should a balancing torque be applied to prevent the coil from turning?
→Light is incident from glass $(\mu=1.5)$ to air. Sketch the variation of the angle of deviation $\delta$ with the angle of incident i for 0 < i < 90°.
→Two coils of wire A and B are placed mutually perpendicular as shown in figure. When current is changed in any one coil, will the current induce in another coil?

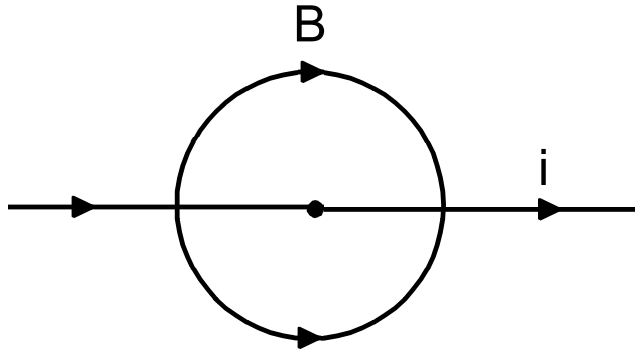

A conducting circular loop of radius a is connected to two Iong, straight wires. The straight wires carry current I as shown in figure. Find the magnetic field B at the centre of the loop.
