Question
State and Prove Gauss theorem in electrostatics.
✓
Answer
Statement: The net-outward normal electric flux through any closed surface of any shape is equal to $\frac{1}{\epsilon_0}$ times the total charge contained within that surface, $\frac{1}{\epsilon_0}$ i.e., $\oint\text{S }\vec{\text{E}}.\vec{\text{ds}}=\frac{1}{\epsilon_0}\Sigma\text{q}$ Where $\oint\limits_{\text{S}}$ indicates the surface integral over the whole of the closed surface, $\Sigma\text{q}$ Is the algebraic sum of all the charges (i.e., net charge in coulombs) enclosed by surface S and remain unchanged with the size and shape of the surface. Proof: Let a point charge +q be placed at centre O of a sphere S. Then S is a Gaussian surface. Electric field at any point on S is given by, $\text{E}=\frac{1}{4\pi\epsilon_0}.\frac{\text{q}}{\text{r}^2}$Image
The electric field and area element points radially outwards, so $\theta=0^\circ,$
Flux through area $\vec{\text{dS}}$ is,
$\text{d}\Phi=\vec{\text{E}}.\text{dS}=\text{E dS}\cos0^\circ=\text{E dS}$ Total flux through surface S is, $\Phi=\oint\limits_{\text{S}}\text{d}\Phi=\oint\limits_{\text{S}}\text{E dS}=\text{E}\oint\limits_{\text{S}}\text{dS}$ = E × Area of Sphere $=\frac{1}{4\pi\epsilon_0}.\frac{\text{q}}{\text{x}^2}.4\pi\text{r}^2$ or, $\Phi=\frac{\text{q}}{\epsilon_0}$ which proves Gauss's theorem.
The electric field and area element points radially outwards, so $\theta=0^\circ,$
Flux through area $\vec{\text{dS}}$ is,
$\text{d}\Phi=\vec{\text{E}}.\text{dS}=\text{E dS}\cos0^\circ=\text{E dS}$ Total flux through surface S is, $\Phi=\oint\limits_{\text{S}}\text{d}\Phi=\oint\limits_{\text{S}}\text{E dS}=\text{E}\oint\limits_{\text{S}}\text{dS}$ = E × Area of Sphere $=\frac{1}{4\pi\epsilon_0}.\frac{\text{q}}{\text{x}^2}.4\pi\text{r}^2$ or, $\Phi=\frac{\text{q}}{\epsilon_0}$ which proves Gauss's theorem.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A uniform magnetic field B exist in a region. An electron projected perpendicular to the field goes in a circle. Assuming Bohr's quantization rule for angular momentum, calculate (a) the smallest possible radius of the electron (b) the radius of the nth orbit and (c) the minimum possible speed of the electron.
Show that the first few frequencies of light that is emitted when electrons fall to the $n^{th}$ level from levels higher than $n,$ are approximate harmonics $($i.e. in the ratio $1 : 2: 3...)$ when $n > > 1$.
→A particle is fired vertically upward with a speed of 15km/s. With what speed will it move in intersteller space. Assume only earth's gravitational field.

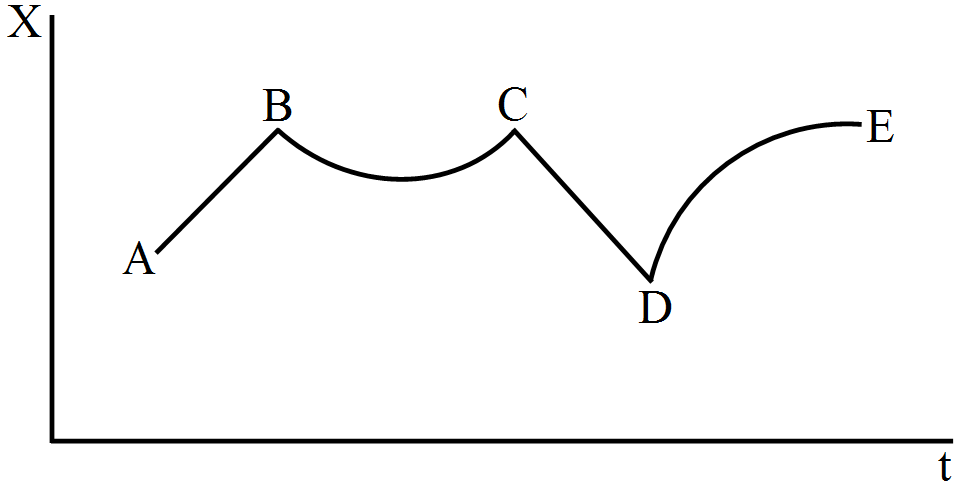

Figure shows the displacement of a particle going along the X-axis as a function of time. The force acting on the particle is zero in the region:
- AB
- BC
- CD
- DE
Find the acceleration of the $500g$ block in figure.
→An ideal gas is trapped between a mercury column and the closed-end of a narrow vertical tube of uniform base containing the column. The upper end of the tube is open to the atmosphere. The atmospheric pressure equals 76cm of mercury. The lengths of the mercury column and the trapped air column are 20cm and 43cm respectively. What will be the length of the air column when the tube is tilted slowly in a vertical plane through an angle of 60°? Assume the temperature to remain constant.

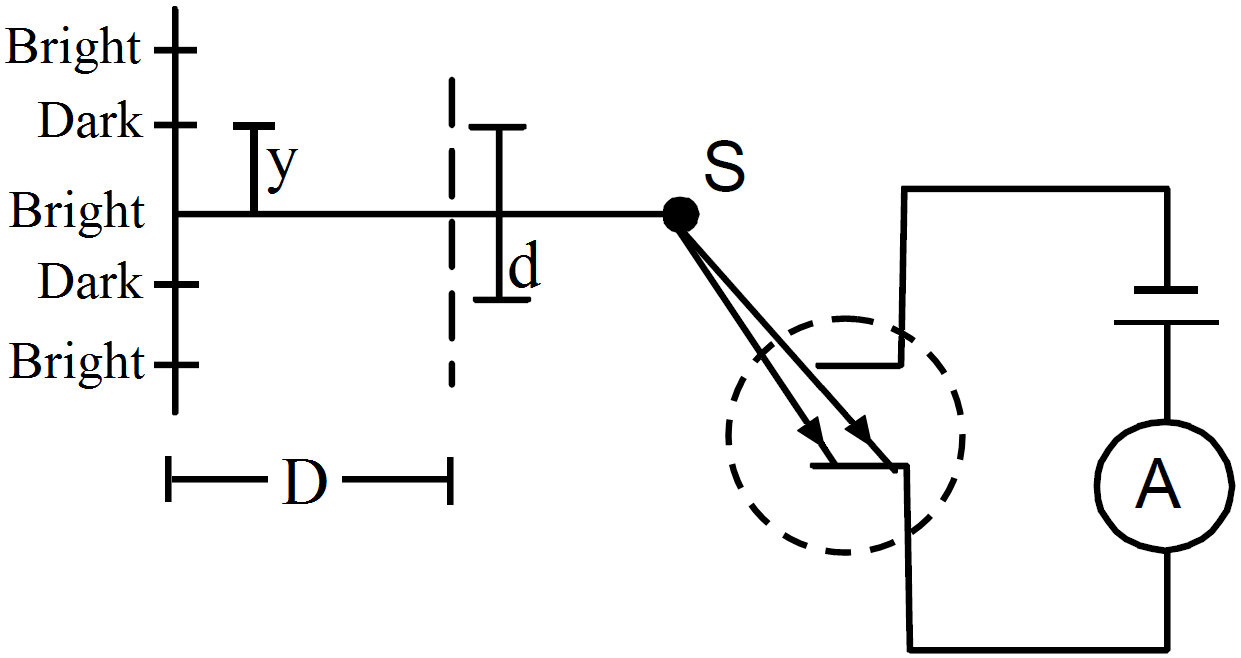

In the arrangement shown in figure $y = 1.0\ mm. d = 0.24\ mm$ end $D = 1.2m$. The work function of the materiel of the emitter is $2.2\ eV$. Find the stopping potential $V$ needed to stop the photocurrent.

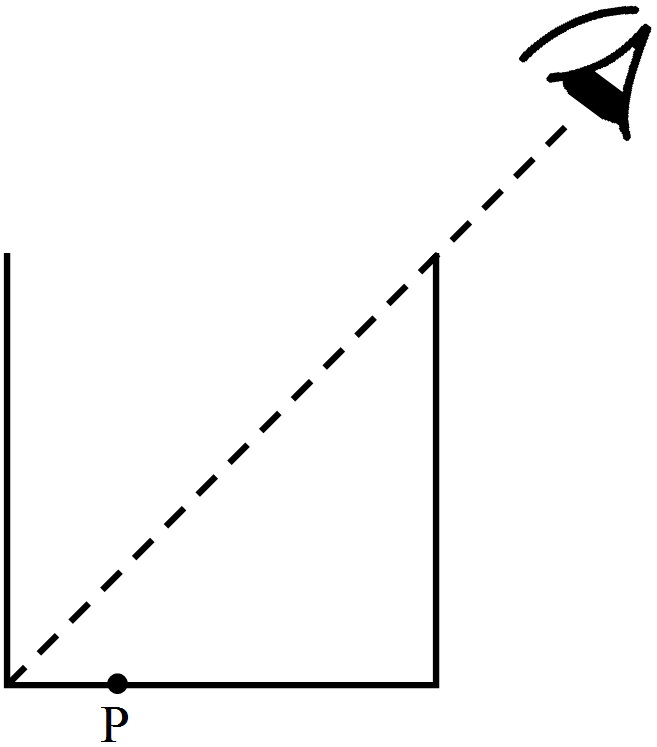

→A cylindrical vessel, whose diameter and height both are equal to 30cm, is placed on a horizontal surface and a small particle P is placed in it at a distance of 5.0cm from the centre. An eye is placed at a position such that the edge of the bottom is just visible. The particle P is in the plane of drawing. Up to what minimum height should water be poured in the vessel to make the particle P visible?
