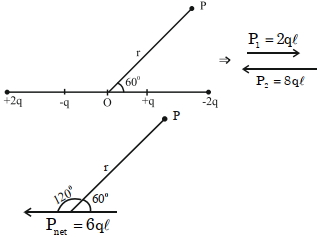

The distance between charges $+\mathrm{q}$ and $-\mathrm{q}$ is $2 l$ and between $+2 \mathrm{q}$ and $-2 \mathrm{q}$ is $4 l$. The electrostatic potential at point $P$ at a distance $r$ from centre $O$ is $-\alpha\left[\frac{q l}{r^2}\right] \times 10^9 \mathrm{~V}$, where the value of $\alpha$ is____. (Use $\left.\frac{1}{4 \pi \varepsilon_0}=9 \times 10^9 \mathrm{Nm}^2 \mathrm{C}^{-2}\right)$
JEE MAIN 2024, Diffcult
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1$STATEMENT-1$ For practical purposes, the earth is used as a reference at zero potential in electrical circuits.andView Solution
$STATEMENT-2$ The electrical potential of a sphere of radius $R$ with charge $\mathrm{Q}$ uniformly distributed on the surface is given by $\frac{\mathrm{Q}}{4 \pi \varepsilon_0 R}$.
- 2View SolutionWhen a test charge is brought in from infinity along the perpendicular bisector of an electric dipole, the work done is ..........
- 3Two identical thin rings, each of radius $R $ meter are coaxially placed at distance $R$ meter apart. If $Q_1$ and $Q_2$ coulomb are respectively the charges uniformly spread on the two rings, the work done in moving a charge $q$ from the centre of one ring to that of the other isView Solution
- 4Sixty four conducting drops each of radius $0.02 m$ and each carrying a charge of $5 \,\mu C$ are combined to form a bigger drop. The ratio of surface density of bigger drop to the smaller drop will be ............View Solution
- 5View SolutionWhich of the following figure shows the correct equipotential surfaces of a system of two positive charges?
- 6Three charged particles having charges $q,-2 q$ and $q$ are placed in a line at points $(-a, 0),(0,0)$ and $(a, 0)$ respectively. The expression for electric potential at $P(r, 0)$ for $r \gg a$ is ...............View Solution
- 7View SolutionIf a charge is shifted from a low potential region to high potential region, the electric potential energy
- 8A parallel plate condenser with a dielectric of dielectric constant $K$ between the plates has a capacity $C$ and is charged to a potential $V\ volt$. The dielectric slab is slowly removed from between the plates and then reinserted. The net work done by the system in this process isView Solution
- 9Two condensers of capacities $2C$ and $C$ are joined in parallel and charged upto potential $V$. The battery is removed and the condenser of capacity $C$ is filled completely with a medium of dielectric constant $K$. The $p.d.$ across the capacitors will now beView Solution
- 10At distance of $5$ $cm$ and $10$ $cm $ outwards from the surface of a uniformly charged solid sphere, the potentials are $100$ $V$ and $75$ $V$ respectively . ThenView Solution
