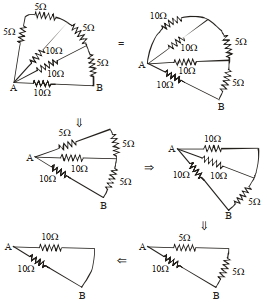

The equivalent resistance between points $A$ and $B$ in the given network is ............ $\Omega$
JEE MAIN 2022, Medium
