The equivalent resistance between $x$ and $y$ in the circuit shown is ............. $\Omega$
Easy
Download our app for free and get startedPlay store
(a) Given circuit is a balance Wheatstone bridge circuit.
art

Download our app
and get started for free

Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*

Similar Questions

  • 1
    Two electric bulbs whose resistance are in the ratio of $1: 2$, are connected in parallel to a constant voltage source. The power dissipated in them has the ratio
    View Solution
  • 2
    In an experiment, the resistance of a material is plotted as a function of temperature (in some range). As shown in the figure, it is a straight line. One may conclude that:
    View Solution
  • 3

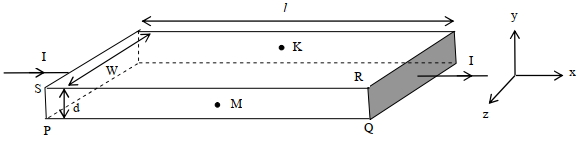

    In a thin rectangular metallic strip a constant current $I$ flows along the positive $x$-direction, as shown in the figure. The length, width and thickness of the strip are $\ell$, w and $d$, respectively. A uniform magnetic field $\vec{B}$ is applied on the strip along the positive $y$-direction. Due to this, the charge carriers experience a net deflection along the $z$ direction. This results in accumulation of charge carriers on the surface $P Q R S$ and appearance of equal and opposite charges on the face opposite to $PQRS$. A potential difference along the $z$-direction is thus developed. Charge accumulation continues until the magnetic force is balanced by the electric force. The current is assumed to be uniformly distributed on the cross section of the strip and carried by electrons.

    $1.$ Consider two different metallic strips ($1$ and $2$) of the same material. Their lengths are the same, widths are $w_1$ and $w_2$ and thicknesses are $d_1$ and $d_2$, respectively. Two points $K$ and $M$ are symmetrically located on the opposite faces parallel to the $x$ - $y$ plane (see figure). $V _1$ and $V _2$ are the potential differences between $K$ and $M$ in strips $1$ and $2$ , respectively. Then, for a given current $I$ flowing through them in a given magnetic field strength $B$, the correct statement$(s)$ is(are)

    $(A)$ If $w _1= w _2$ and $d _1=2 d _2$, then $V _2=2 V _1$

    $(B)$ If $w_1=w_2$ and $d_1=2 d_2$, then $V_2=V_1$

    $(C)$ If $w _1=2 w _2$ and $d _1= d _2$, then $V _2=2 V _1$

    $(D)$ If $w _1=2 w _2$ and $d _1= d _2$, then $V _2= V _1$

    $2.$ Consider two different metallic strips ($1$ and $2$) of same dimensions (lengths $\ell$, width w and thickness $d$ ) with carrier densities $n_1$ and $n_2$, respectively. Strip $1$ is placed in magnetic field $B_1$ and strip $2$ is placed in magnetic field $B_2$, both along positive $y$-directions. Then $V_1$ and $V_2$ are the potential differences developed between $K$ and $M$ in strips $1$ and $2$, respectively. Assuming that the current $I$ is the same for both the strips, the correct option$(s)$ is(are)

    $(A)$ If $B_1=B_2$ and $n_1=2 n_2$, then $V_2=2 V_1$

    $(B)$ If $B_1=B_2$ and $n_1=2 n_2$, then $V_2=V_1$

    $(C)$ If $B _1=2 B _2$ and $n _1= n _2$, then $V _2=0.5 V _1$

    $(D)$ If $B_1=2 B_2$ and $n_1=n_2$, then $V_2=V_1$

    Give the answer question $1$ and $2.$

    View Solution
  • 4
    Correct set up to verify Ohm's law is
    View Solution
  • 5
    A potential divider is used to give outputs of $4\, V$ and $8\, V$ from a $12\, V$ source. Which combination of resistances, $(R_1, R_2, R_3)$ gives the correct voltages ? $R_1 : R_2 : R_3$
    View Solution
  • 6
    Three resistors are connected to form the sides of a triangle $ABC$, the resistance of the sides $AB$, $BC$ and $CA$ are $40\,ohms$, $60\,ohms$ and $100\,ohms$ respectively. The effective resistance between the points $A$ and $B$ in $ohms$ will be
    View Solution
  • 7
    The resistance of a wire is $5 \Omega$. It's new resistance in ohm if stretched to $5$ times of it's original length will be :
    View Solution
  • 8
    In the circuit shown in figure, switch $S_1$ is initially closed and $S_2$ is open. Find $V_a -V_b$ .............. $V$
    View Solution
  • 9
    Two bulbs consume same power when operated at $200\, V$ and $300\, V$ respectively. When these bulbs are connected in series across a $D.C$. source of $500\, V$, then
    View Solution
  • 10
    Consider a wire having current $10\,A$ having area of crossection $1\,cm^2$. If number of electrons per unit volume is $9 \times 10^{28}\, m^{-3}$. Find the drift velocity of electrons
    View Solution
