The inverse square law in electrostatics is |F|= e^2 (4 _0)r^2 fo…

Question

The inverse square law in electrostatics is $|\text{F}|=\frac{\text{e}^2}{(4\pi\in_0)\text{r}^2}$ for the force between an electron and a proton. The $\Big(\frac{1}{\text{r}}\Big)$ dependence of |F| can be understood in quantum theory as being due to the fact that the 'particle' of light (photon) is massless. If photons had a mass m_p, force would be modified to $|\text{F}|=\frac{\text{e}^2}{(4\pi\in_0)\text{r}^2}\Big[\frac{1}{\text{r}^2}+\frac{\lambda}{\text{r}}\Big].\text{e}\times\text{p}(-\lambda\text{r})$ where $\lambda=\frac{\text{m}_\text{p}\text{c}}{\text{h}}$ and $\text{h}=\frac{\text{h}}{2\pi}$. Estimate the change in the ground state energy of a H-atom if m_p were 10^-6 times the mass of an electron.

✓

Answer

We are given $\lambda=\frac{\text{m}_\text{p}\text{c}}{\text{h}}=\frac{\text{m}_\text{p}\text{c}^2}{\text{hc}}=\frac{(10^{-6}\text{m}_\text{e})\text{c}^2}{\text{hc}}$
$=\frac{10^{-6}[0.51](1.6\times10^{-13}\text{J})3\times10^8\text{ms}^{-1}}{(1.05\times10^{-34}\text{Js})(3\times10^8\text{ms}^{-1})}$
$=0.26\times10^7\text{m}^{-1},\ \ [\because\ \text{m}_\text{e}\text{c}^2=0.51\text{MeV}]$
$\text{r}_\text{B}(\text{Bohr's radius}=051\mathring{\text{A}}=0.51\times10^{-10}\text{m}$
or $\lambda\text{r}_\text{B}=(0.26\times10^7\text{m}^{-1})(0.51\times10^{-10}\text{m})$
$=0.14\times10^{-3}< < 1$
Furhter, as $|\text{F}|=\Big(\frac{\text{e}^2}{4\pi\in_0}\Big)\bigg[\frac{1}{\text{r}^2}+\frac{\lambda}{\text{r}}\bigg]\text{e}^{\lambda\text{r}}\ .....(\text{i})$
and $|\text{F}|=\frac{\text{dU}}{\text{dr}},$
$\text{U}_\text{r}=\int|\text{F}|\text{dr}=\Big(\frac{\text{e}^2}{4\pi\in_0}\Big)\int\Big(\frac{\lambda_\text{e}^{-\lambda\text{r}}}{\text{r}}+\frac{\text{e}^{-\lambda\text{r}}}{\text{r}^2}\Big)\text{dr}$
If $\text{z}=\frac{\text{e}^{-\lambda\text{r}}}{\text{r}}=\frac{1}{\text{r}}(\text{e}^{-\lambda\text{r}}),$
$\frac{\text{dz}}{\text{dr}}=\Big[\frac{1}{\text{r}}(\text{e}^{-\lambda\text{r}})(-\lambda)+(\text{e}^{-\lambda\text{r}})\Big(-\frac{1}{\text{r}^2}\Big)\Big]$
or $\text{dz}=-\Big[\frac{\lambda\text{e}^{-\lambda\text{r}}}{\text{r}}+\frac{\text{e}^{-\lambda\text{r}}}{\text{r}^2}\Big]\text{dr}$
Thus $\int\Big(\frac{\lambda\text{e}^{-\lambda\text{r}}}{\text{r}}+\frac{\text{e}^{-\lambda\text{r}}}{\text{r}^2}\Big)\text{dr}\ \Rightarrow-\int\text{dz}=-\text{z}=-\frac{\text{e}^{-\lambda\text{r}}}{\text{r}}$
$=-\Big(\frac{\text{e}^2}{4\pi\text{E}_0}\Big)\Big(\frac{\text{e}^{-\lambda\text{r}}}{\text{r}}\Big)\ .....(\text{ii})$
We know that
$\text{mvr}=\text{h}\Rightarrow\ \text{v}=\frac{\text{h}}{\text{mr}};\text{ and }$
$\frac{\text{mv}^2}{\text{r}}=\text{F}=\Big(\frac{\text{e}^2}{4\pi\in_0}\Big)\Big(\frac{1}{\text{r}^2}+\frac{\lambda}{\text{r}}\Big)$
[Putting $\text{e}^{-\lambda\text{r}}\approx1$ in eqn. (i)]
Thus, $\Big(\frac{\text{m}}{\text{r}}\Big)\Big(\frac{\text{h}^2}{\text{m}^2\text{r}^2}\Big)=\Big(\frac{\text{e}^2}{4\pi\in_0}\Big)\Big(\frac{1}{\text{r}^2}+\frac{\lambda}{\text{r}}\Big)$
or $\frac{\text{h}^2}{\text{m}}=\Big(\frac{\text{e}^2}{4\pi\in_0}\Big)\Big(\frac{\text{r}+\lambda\text{r}^2}{\text{r}^3}\Big)$
or $\frac{\text{h}^2}{\text{m}}=\Big(\frac{\text{e}^2}{4\pi\in_0}\Big)({\text{r}+\lambda\text{r}^2})\ .....(\text{iii})$
When $\lambda=0,\text{r}=\text{r}'_\text{B}$ and
$\frac{\text{h}^2}{\text{m}}=\Big(\frac{\text{e}^2}{4\pi\in_0}\Big)\text{r}_\text{B}\ .....(\text{iv})$
From eqns. (iii) and (iv),
$\text{r}_\text{B}+\text{r}+\lambda\text{r}^2$
Let $\text{r}=\text{r}_\text{B}+\delta$ so that from (iii)
$\text{r}_\text{B}=(\text{r}_\text{B}+\delta)+\lambda(\text{r}^2_\text{B}+\delta^2+2\delta\text{r}_\text{B})$
or $0=\lambda\text{r}_\text{B}^2+\delta(1+2\lambda\text{r}_\text{B})\ \ (\text{neglecting }\delta^2)$
or $\delta=-\frac{\lambda\text{r}_\text{B}^2}{(1+2\lambda\text{r}_\text{B})}=(-\lambda\text{r}_\text{B}^2)(1+2\lambda_\text{B})^{-1}$
$=(-\lambda\text{r}_\text{B}^2)(1+2\lambda_\text{B})^{-1}=-\lambda\text{r}_\text{B}^2\ \ (\because\ \lambda\text{r}_\text{B}< < 1)$
From eqn. (ii) $\text{u}_\text{r}=-\Big(\frac{\text{e}^2}{4\pi\in_0}\Big)\frac{\text{e}^{-\lambda(\text{r}_\text{B}+\delta)}}{(\text{r}_\text{B}+\delta)}$
$=-\Big(\frac{\text{e}^2}{4\pi\in_0}\frac{1}{\text{r}_\text{B}}\Big)\Big(1-\frac{\delta}{\text{r}_\text{B}}\Big)(1-\lambda\text{r}_\text{B})\approx-\frac{\text{e}^2}{4\pi\in_0\text{r}_\text{B}}$
$=-24.2\text{eV}$
$[\because\ \text{e}^{-\lambda(\text{r}_\text{B}+\delta)}\approx\ 1-\lambda(\text{r}_\text{B}+\delta)=1-\lambda\text{r}_\text{B}-\lambda\delta\approx1-\lambda\text{e}_\text{B}]$
and $\frac{1}{(\text{r}_\text{B}+\delta)}=\frac{1}{\text{r}_\text{B}(1+\frac{\delta}{\text{r}_\text{B}})}=\frac{1}{\text{r}_\text{B}}\Big(1+\frac{\delta}{\text{r}_\text{B}}\Big)^{-1}$
$=\frac{1}{\text{r}_\text{B}}\Big(1-\frac{\delta}{\text{r}_\text{B}}\Big)$
Further, KE of the electron,
$\text{K}=\frac{1}{2}\text{mv}^2=\frac{1}{2}\text{m}\Big(\frac{\text{h}^2}{\text{m}^2\text{r}^2}\Big)$
$=\frac{\text{h}^2}{2\text{mr}^2}=\frac{\text{h}^2}{2\text{m}(\text{r}_\text{B}+\delta)^2}=\frac{\text{h}^2}{2\text{mr}_\text{B}^2+(1+\frac{\delta}{\text{r}_\text{B}})^2}$
$\Big(\frac{\text{h}^2}{2\text{mr}^2_\text{B}}\Big)\Big(1+\frac{\delta}{\text{r}_\text{B}}\Big)^{-2}=\Big(\frac{\text{h}^2}{2\text{mr}^2_\text{B}}\Big)\Big(1-\frac{\delta}{\text{r}_\text{B}}\Big)$
$=(13.6)(1+2\lambda\text{r}_\text{B})\text{eV}$
$\Big(\text{as}\frac{\text{h}^2}{2\text{mr}^2_\text{B}}=13.6\text{eV and }\delta=-\lambda\text{r}^2_\text{B}\Big)$
Total energy of H-atom in the ground state = final energy - initial energy
$=(-13.6+27.2\lambda\text{r}_\text{B})\text{eV}-(-13.6\text{eV})$
$=(27.2\lambda\text{r}_\text{B})\text{eV}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Atoms→Atoms — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

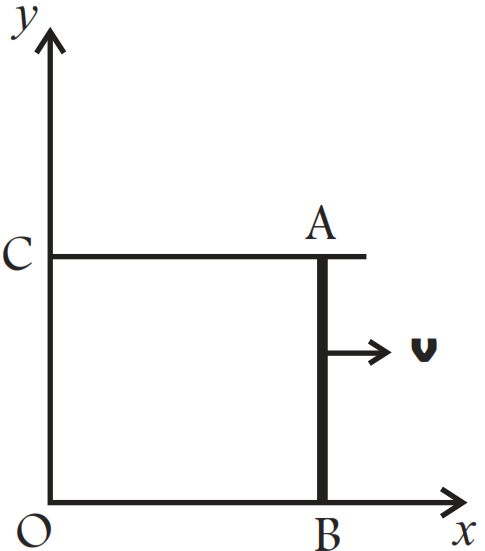

A magnetic field $\text{B}=\text{B}_0\sin(\omega\text{t})\hat{\text{k}}$ covers a large region where a wire AB slides smoothly over two parallel conductors separated by a distance d (Fig.). The wires are in the x-y plane. The wire AB (of length d) has resistance R and the parallel wires have negligible resistance. If AB is moving with velocity v, what is the current in the circuit. What is the force needed to keep the wire moving at constant velocity?

→

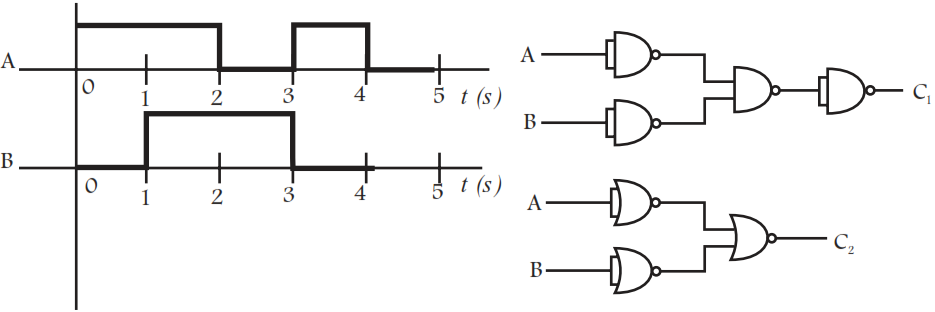

Draw the output signals C₁ and C₂ in the given combination of gates (Fig.).

→

Find out magnetic force on parallel current carrying conductors and also state their special conditions.

→

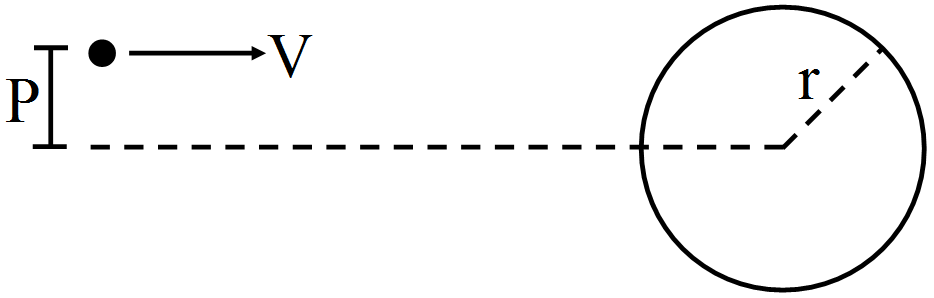

A small particle travelling with a velocity u collides elastically with a spherical body of equal mass and of radius r initially kept at rest. The centre of this spherical body is located a distance (p < r) away from the direction of motion of the particle. Find the final velocities of the two particles.
