The total current supplied to the circuit by the battery is ............. $A$
AIEEE 2004, Medium
Download our app for free and get started

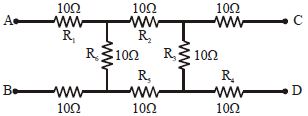

Given circuit can be redrawn as follows
$ \Rightarrow $ $i = \frac{6}{{1.5}} = 4\,A$
