Question
Three capacitors each of capacitance 9 pF are connected in series.
  1. What is the total capacitance of the combination?
  2. What is the potential difference across each capacitor if the combination is connected to a 120 V supply?
✓

Answer

Capacitance of each of the three capacitors, C = 9 pF
  1. Equivalent capacitance (C') of the combination of the capacitors is given by the relation,
$\frac{1}{\text{C}'}=\frac{1}{\text{C}}+\frac{1}{\text{C}}+\frac{1}{\text{C}}$

$=\frac{1}{9}+\frac{1}{9}+\frac{1}{9}=\frac{3}{9}=\frac{1}{3}$

$\therefore$ C' = 3µF

Therefore, total capacitance of the combination is 3µF.
  1. Supply voltage, V = 120 V
Potential difference (V) across each capacitor is equal to one-third of the supply voltage.

$\therefore\text{V}'=\frac{\text{V}}{3}=\frac{120}{3}=40\text{V}$

Therefore, the potential difference across each capacitor is 40 V.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "2 Marks Questions" from Electrostatic Potential and Capacitance→Electrostatic Potential and Capacitance — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

A semiconductor has equal electron and hole concentration of $6 \times 10^8 / \mathrm{m}^3$. On doping with certain impurity, electron concentration increases to $9 \times 10^{12} / \mathrm{m}^3$.
  1. Identify the new semiconductor obtained after doping.
  2. Calculate the new hole concentration.
→
If the sound level in a room is increased from 50dB to 60dB, by what factor is the pressure amplitude increased?
→
How much positive and negative charge is there in a cup of water?
→
A park has a radius of 10m. If a vehicle goes round it at an average speed of 18km/ hr, what should be the proper angle of banking?
→
What is the reason, why the diameter of the objective of a telescope should be large for a good resolution?
→
Can there be a potential difference between two adjacent conductors carrying the same charge?
→
Explain the difference between behaviour of a conductor and a dielectric inside external electric field.
→
From what electric dipole of electric field is found and for which two cases is the result simple?
→

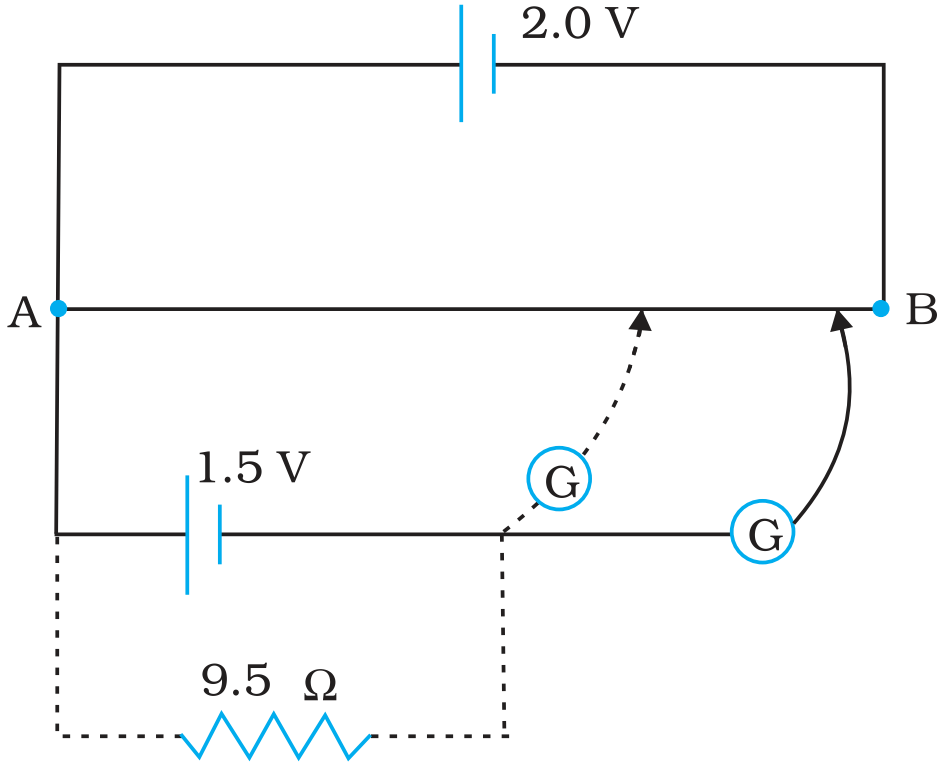

Figure shows a 2.0 V potentiometer used for the determination of internal resistance of a 1.5 V cell. The balance point of the cell in open circuit is 76.3 cm. When a resistor of $9.5\ \Omega$ is used in the external circuit of the cell, the balance point shifts to 64.8 cm length of the potentiometer wire. Determine the internal resistance of the cell.
→
