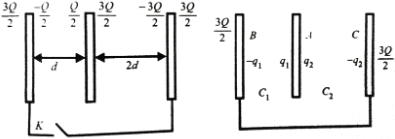

Three large plates are arranged as shown. How much charge will flow through the key $k $ if it is closed?
