Question
Two charges 2 µC and –2 µC are placed at points A and B 6 cm apart.
  1. Identify an equipotential surface of the system.
  2. What is the direction of the electric field at every point on this surface?
✓

Answer

The situation is represented in the given figure.
  1. An equipotential surface is the plane on which total potential is zero everywhere. This plane is normal to line AB. The plane is located at the mid-point of line AB because the magnitude of charges is the same.
  2. The direction of the electric field at every point on this surface is normal to the plane in the direction of AB.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "2 Marks Questions" from Electrostatic Potential and Capacitance→Electrostatic Potential and Capacitance — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→

Similar questions

Draw the transfer characteristic curve of a base biased transistor in $CE$ configuration. Explain clearly how the active region of the $V_0$ versus $V_i$ curve in a transistor is used as an amplifier.
→
Write a short note on radio waves.
→
Two semiconductor materials X and Y shown in the given figure, are made by doping germanium crystal with indum and arsenic respectively. The two are joined end to end and connected to a battery as shown.
  1. Will the junction be forward biased or reverse biased?
  2. Sketch a V-I graph for this arrangement.
→
A capacitor, made of two parallel plates each of plate area A and separation d, is being charged by an external ac source. Show that the displacement current inside the capacitor is the same as the current charging the capacitor.
→
If work function of caesium metal is $2.14\ eV ,$ then calculate its threshold frequency.
→
Explain Ohm's law.
→
Can you add three unit vectors to get a unit vector? Does your answer change if two unit vectors are along the coordinate axes?
→
What is the importance of radial magnetic field in a moving coil galvanometer?
→

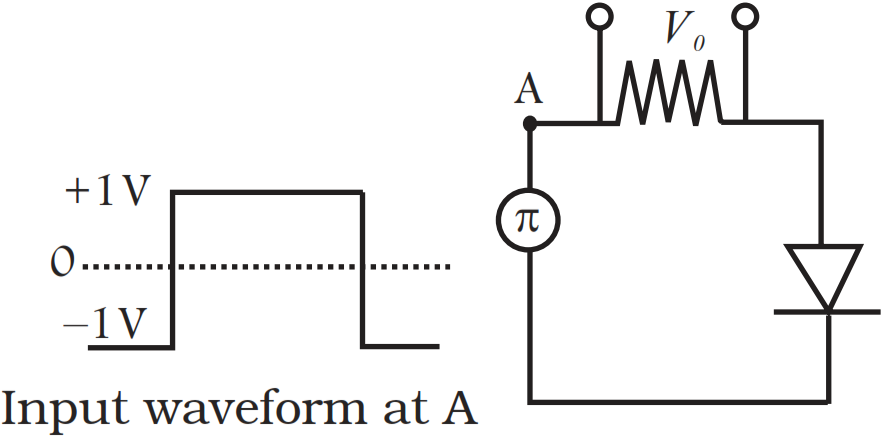

Draw the output waveform across the resistor (Fig).
→
