Question
Two coherent waves of equal amplitude produce interference pattern in Young’s double slit experiment. What is the ratio of intensity at a point where phase difference is $\frac{\pi}{2}$ to intensity at centre?
✓
Answer
$\text{I}_\frac{\pi}{2}=\text{a}^2_1+\text{a}^2_2+\text{2a}_1\text{a}_2\cos\varphi$
$=\text{a}^2+\text{a}^2+2\text{a}^2\cos\frac{\pi}{2}=2\text{a}^2$
$\text{I}_\max=(\text{a}_2+\text{a}_2)^2=(\text{a}+\text{a})^2=4\text{a}^2$
$\therefore\frac{\text{I}_\frac{\pi}{2}}{\text{I}_\max}=\frac{2\text{a}^2}{\text{4a}^2}=\frac{1}{2}.$
$=\text{a}^2+\text{a}^2+2\text{a}^2\cos\frac{\pi}{2}=2\text{a}^2$
$\text{I}_\max=(\text{a}_2+\text{a}_2)^2=(\text{a}+\text{a})^2=4\text{a}^2$
$\therefore\frac{\text{I}_\frac{\pi}{2}}{\text{I}_\max}=\frac{2\text{a}^2}{\text{4a}^2}=\frac{1}{2}.$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
The half-life of a radioisotope is 10h. Find the total number of disintegrations in the tenth hour measured from a time when the activity was 1Ci.
Give a circuit diagram of a common emitter amplifier using an n-p-n transistor. Draw the input and output waveforms of the signal. Write the expression for its voltage gain.
A uniformly moving train passes by a long platform. Consider the events' engine crossing the beginning of the platform' and 'engine crossing the end of the platform'. Which frame (train frame or the platform frame) is the proper frame for the pair of events?
Answer the following questions.

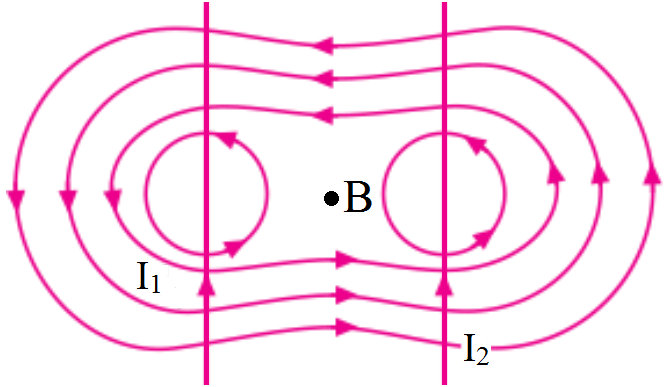

- Draw the magnetic field lines due to two straight, long, parallel conductors carrying currents I1 and I2 in the same direction. Write an expression for the force acting per unit length on one conductor due to other. Is this force attractive or repulsive?

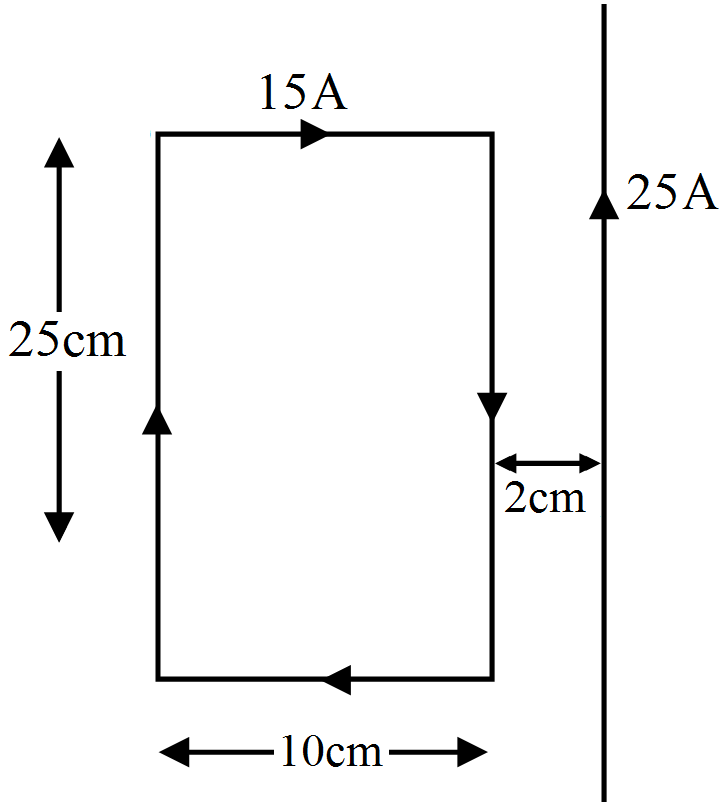

- Figure shows a rectangular current-carrying loop placed 2cm away from a long, straight, current-carrying conductor. What is the direction and magnitude of the net force acting on the loop?
When a charged comb is brought near a small piece of paper, it attracts the piece. Does the paper become charged when the comb is brought near it?

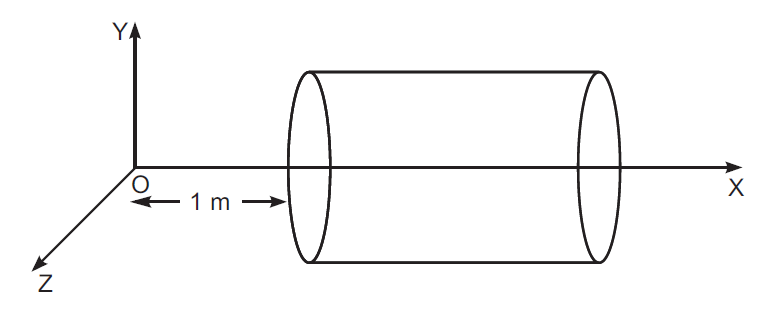

A hollow cylindrical box of length 1 m and area of cross-section 25 cm2 is placed in a three dimensional coordinate system as shown in the figure. The electric field in the region is given by$\overrightarrow{\text{E}} = 50\text{x}\hat{\text{i}},$ where E is in NC–1 and x is in metres. Find
