Two long thin, parallel conductors carrying equal currents in the same direction are fixed parallel to the $x$-axis, one passing through $y = a$ and the other through $y = -a$. The resultant magnetic field due to the two conductors at any point is $B$. Which of the following are correct?

A
$B = 0$ for all points on the $x$-axis
B
At all points on the $y-$axis, excluding the origin, $B$ has only $a\,\, z-$ component.
C
At all points on the $z-$axis, excluding the origin, $B$ has only $a\,\, y-$ component.
✓
All of the above

✓

Answer

Correct option: D.

All of the above

d
$(A)$ $\mathrm{B}=\frac{\mu_{0} \mathrm{I}}{2 \pi \mathrm{a}}-\frac{\mu_{0} \mathrm{I}}{2 \pi \mathrm{a}}=0$

$(B)$ On $y-axis$ say at $(y, 0,0)$

$B=\frac{-\mu_{0} I}{2 \pi(a+y)} \hat{k}+\frac{\mu_{0} I}{2 \pi(a-y)} \hat{k}$

So except at origin, $B$ has only $z-components$

$B$ cannot has $x-component$ as $B$ is perpendicular to direction of $I .$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 4. Moving charges and magnetism→4. Moving charges and magnetism — all question types→Physics STD 12 Science question papers→CBSE Board STD 12 Science question papers→CBSE Board question paper generator→

Similar questions

Two identical short bar magnets, each having magnetic moment of $10\, Am^2$, are arranged such that their axial lines are perpendicular to each other and their centres be along the same straight line in a horizontal plane. If the distance between their centres is $0.2 \,m$ , the resultant magnetic induction at a point midway between them is$({\mu _0} = 4\pi \times {10^{ - 7}}\,H{m^{ - 1}})$

The current in the primary circuit of a potentiometer is $0.2\, A$. The specific resistance and cross section of the potentiometer wire are $4\times10^{-7}\,ohm$ $metre$ and $8\times10^{-7}\, m^2$ respectively. The potential gradient will be equal to .............. $V/m$

The minimum wavelength of $X$-rays produced by an electron accelerated through a potential difference of $V_{\text {volts }}$ is proportional to :

The intensity of the light from a bulb incident on a surface is $0.22 \,W / m ^{2}$. The amplitude of the magnetic field in this light-wave is_______ $\times 10^{-9} \,T$. (Given : Permittivity of vacuum $\in_{0}=8.85 \times 10^{-12} \,C ^{2} N ^{-1} m ^{-2}$, speed of light in vacuum $c =3 \times 10^{8} \,ms ^{-1}$ )

The reason of current flow in $P-N$ junction in forward bias is

An ammeter $A$ of finite resistance, and a resistor $R$ are joined in series to an ideal cell $C$. $A$ potentiometer $P$ is joined in parallel to $R$. The ammeter reading is $I_0$ and the potentiometer reading is $V_0$. $P$ is now replaced by a voltmeter of finite resistance. The ammeter reading now is $I$ and the voltmeter reading is $V$.

A copper disc of radius $0.1\, m$ rotates about its centre with $10$ revolutions per second in a uniform magnetic field of $0.1$ Tesla. The emf induced across the radius of the disc is

Angular magnification of telescope if focal length of objective and eye lenses are $10\, cm$ and $10\, mm$ respectively and tube length is $11\, cm$

For sky wave propagation of a $10\, MHz$ signal, what should be the minimum electron density in ionosphere

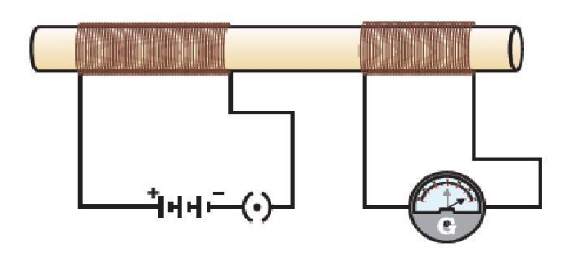

In the arrangement shown in given Figure, there are two coils wound on a non$-$conducting cylindrical rod. Initially the key is not inserted. Then the key is inserted and later removed. Then,
