Question

Two pendulums with identical bobs and lengths are suspended from a common support such that in rest position the two bobs are in contact. One of the bobs is released after being displaced by 10° so that it collides elastically head-on with the other bob.

Describe the motion of two bobs.
Draw a graph showing variation in energy of either pendulum with time, for where T is the period of each pendulum.

✓

Answer

Let at t = 0 A is at lowest position and B is at its height position at 10°

PE_A = 0, PE_B = E, KE_A = KE_B = 0

K.E. of both are zero. Now bob is released.

Click and drag to move reaches to A and collide elastically as both bobs are identical then,

KE_A = 0, KE_B = E, PE_A = 0

PE_B = 0

AT Click and drag to move reaches at it’s maximum height and B remains at it’s lowest position.

KE_A = 0, KE_B = E, PE_A = E, PE_B = 0

At Click and drag to move Bob A hits the bob B which was at rest elastically and ball A becomes at rest, B moves upward.

KE_A = 0, KE_B = E, PE_A = E, PE_B = 0

E_A = 0, E_B = E

At Click and drag to move Bob B is at its maximum height and A is at lower height.

So, KE_A = 0, KE_B = 0, PE_A = 0, PE_B = E

The entire process is repeated.

Time t	KE_A	PE_A	E_A	KE_B	PE_B	E_B
0	0	0	0	0	E	E
	0	0	E	0	0	0
	0	0	0	0	E	E
	E	0	E	0	0	0
	0	0	0	0	E	E

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Work, Energy, and Power→Work, Energy, and Power — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

Is it possible that in a Coolidge tube characteristic $\text{L}_\alpha$ X-rays are emitted but not $\text{K}_\alpha$ X-rays?

(i) Explain spectrum of black-body radiation.
(ii) Write Wien's displacement law. From this law find the temperature of its.

A smooth sphere of radius R is made to translate in a straight line with a constant acceleration a. A particle kept on the top of the sphere is released from there at zero velocity with respect to the sphere. Find the speed of the particle with respect to the sphere as a function of the angle $\theta$ it slides.

Explain by making a labelled diagram of two dimensional collision or oblique collision.

Considering the pressure p to be proportional to the density, find the pressure p at a height h if the pressure on the surface of the earth is p₀.

A truck starts from rest and accelerates uniformly at $2.0 ms^{-2}$. At $t =10 s$, a stone is dropped by a person standing on the top of the truck ( 6 m high from the ground). What are the (a) velocity, and (b) acceleration of the stone at $t=11 s$ ? (Neglect air resistance.)

A horse cannot pull a cart and run in empty space.
Passengers are thrown forward from their seats when a speeding bus stops suddenly.
It is easier to pull a lawn mower than to push it.
A cricketer moves his hands backwards while holding a catch.

When a metal plate is exposed to a monochromatic beam of light of wavelength 400nm, a negative potential of 1.1V is needed to stop the photocurrent. Find the threshold wavelength for the metal.

It is required to construct a $10\mu\text{F}$ capacitor which can be connected across a 200V battery. Capacitors of capacitance $10\mu\text{F}$ are available but they can withstand only 50V. Design a combination which can yield the desired result.

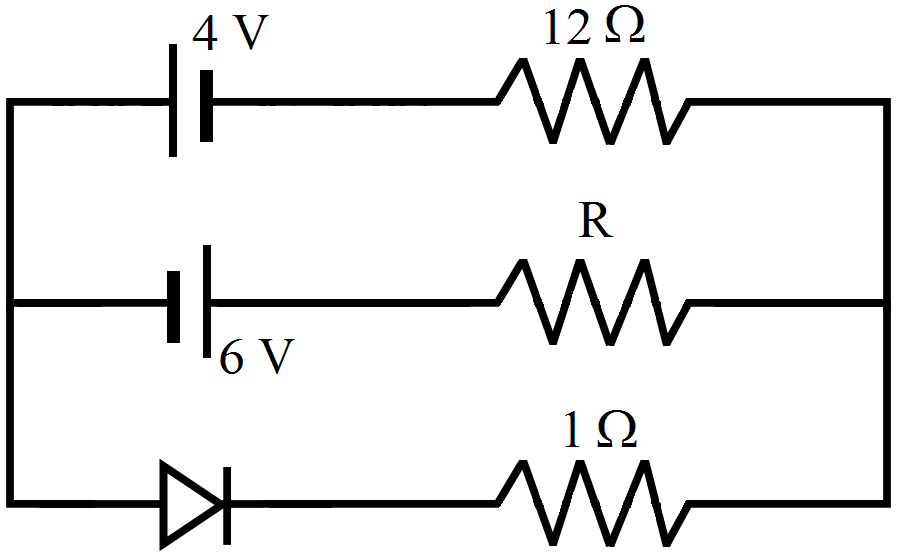

Find the current through the resistance R in figure. if.
