Question

Using crystal field theory, draw energy level diagram, write the electronic configuration of the central metal atom/ion and determine the magnetic moment value in the following:

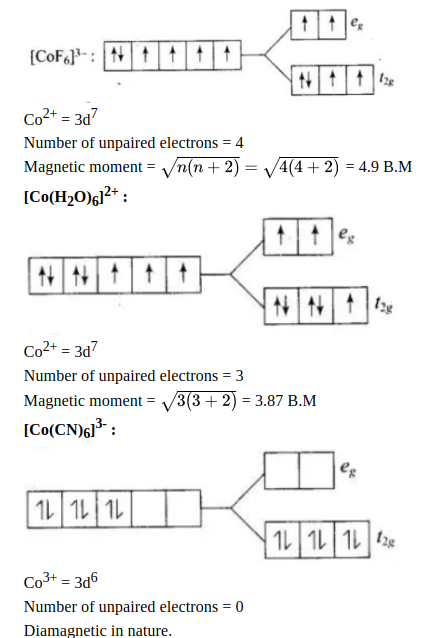

i. $\left[ CoF _6\right]^{3-},\left[ Co \left( H _2 O \right)_6\right]^{2+},\left[ Co ( CN )_6\right]^{3-}$

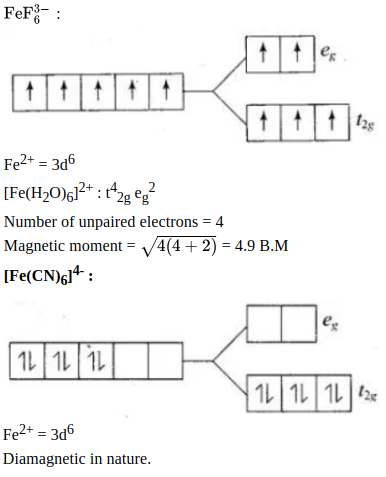

ii. $\left[ FeF _6\right]^{3-},\left[ Fe \left( H _2 O \right)_6\right]^{2+},\left[ Fe ( CN )_6\right]^{4-}$

✓

Answer

(1)

(2)

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Long Answer Type Questions [5M]" from MODEL PAPER 4→MODEL PAPER 4 — all question types→Chemistry STD 12 Science question papers→Bihar Board STD 12 Science question papers→Bihar Board question paper generator→

Similar questions

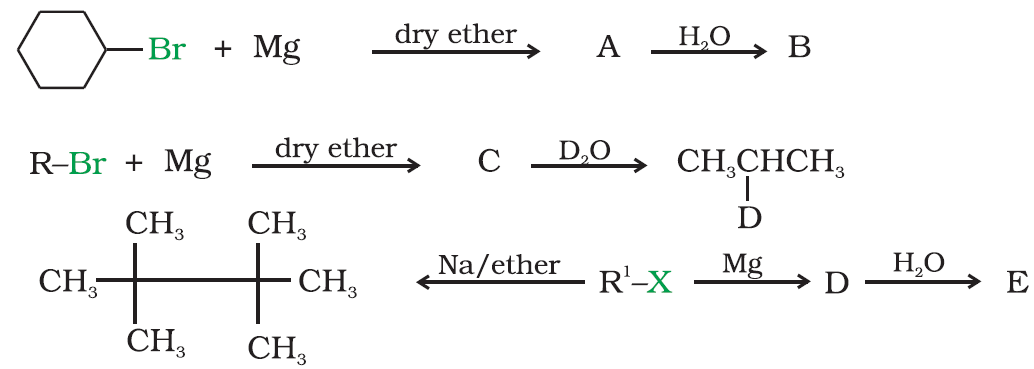

Identify A, B, C, D, E, R and R¹ in the following:

→

Explain the various methods of preparation of $CHCl _3$ and its chemical properties.

What are co-ordination compounds ? Mention the differences between complex compounds and double salts.

Complete the following chemical equations:

$ \text{MnO}_{4}^{-}\text{(aq)}+\text{S}_{2}\text{O}_{4}\text{(aq)}+\text{H}_{2}\text{O}\text{(l)}\rightarrow$
$\text{Cr}_{2}\text{O}_{4}^{2-}\text{(aq)}+\text{Fe}^{2+}\text{(aq)}+\text{H}^{+}\text{(aq)}\rightarrow$

Explain the following observations:

La³⁺ (Z = 57) and Lu³⁺ (Z = 71) do not show any colour in solutions.
Among the divalent cations in the first series of transition elements, manganese exhibits the maximum paramagnetism.
Cu⁺ ion is not known in aqueous solutions.

Explain relationship between $E _{\text {cell }}^{\circ}$ and equilibrium constant with the help of Nernst equation.

How is osmotic pressure determined by Berkeley-Hartley method ?

Explain the stability of the highest oxidation states of the 3d series.

Draw the structure of $[Co(NH_{3})_{6}]^{3+}$ and $[Ni(CO)_{4}]$. Write the hybridisation of atomic orbital of transition metal in each case.

Why do transition elements show variable oxidation states?

Name the element showing maximum number of oxidation states among the first series of transition metals form Sc (Z=21) to Zn (Z=30).
Name the element which shows only +3 oxidation state.

What is lanthanoid contraction? Name an important alloy which contains some of the lanthanoid metals.

Discuss aldol condensation in detail.
