MCQ

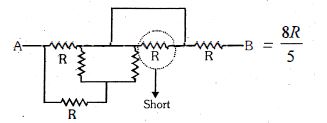

What is the equivalent resistance between $A$ and $B$
- ✓$\frac{{8R}}{5}$
- B$\frac{{5R}}{3}$
- C$\frac{{3R}}{2}$
- D$\frac{{R}}{2}$
✓
Answer
Correct option: A.
$\frac{{8R}}{5}$
a
