8. mechanical properties of solids — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysics8. mechanical properties of solids1 Mark
MCQ
When a load $W$ is hung from a wire of length $2\ L$ , it just breaks. Now this wire is completely melted and a new wire of length $L$ is formed. If the load $W$ is hung from this new wire
  • A
    It will definitely break
  • ✓
    It will definitely not break
  • C
    cannot be predicted
  • D
    None of these
✓

Answer

Correct option: B.
It will definitely not break
b
If length halved, area is doubled

$\Rightarrow$ Breaking stress $=\frac{\mathrm{W}}{\mathrm{A}}=\frac{\mathrm{W}^{\prime}}{2 \mathrm{A}}$

to break new wire load $W^{\prime}=2 W$

on applying $W,$ new wire will not break.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 8. mechanical properties of solids→8. mechanical properties of solids — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

The molar specific heat at constant pressure for a monoatomic gas is
→
A body is projected from earth's surface to become its satellite. Its time period of revolution will not depend upon:
→
The potential energy $U$ between two molecules as a function of the distance $X$ between them has been shown in the figure. The two molecules are
→
A particle is moving with constant speed $\sqrt 2\,m/s$ on a circular path of radius $10\,cm$. Find the magnitude of average velocity when it has covered ${\left( {\frac{3}{4}} \right)^{th}}$ circular path
→
Three weight $A, B$ and $C$ are connected by string as shown in the figure. The system moves over a frictionless pulley. The tension in the string connecting $A$ and $B$ is (where $g$ is acceleration due to gravity)
→

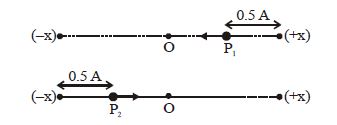

Two bodies performing $S.H.M.$ have same amplitude and frequency. Their phases at a certain instant are as shown in the figure. The phase difference between them is
→
