Some Mechanical Properties of Matter — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysicsSome Mechanical Properties of Matter1 Mark
MCQ
When a metal wire is stretched by a load, the fractional change in its volume $\frac{\triangle\text{V}}{\text{V}}$ is proportional to.
  • ✓
    $\frac{\triangle\text{l}}{\text{l}}$
  • B
    $\Big(\frac{\triangle\text{l}}{\text{l}}\Big)^2$
  • C
    $\sqrt{\frac{\triangle\text{l}}{\text{l}}}$
  • D
    None of these.
✓

Answer

Correct option: A.
$\frac{\triangle\text{l}}{\text{l}}$
C.S.A = A
Lenghth = l
Volume of the wire V = Al
Assuming no lateral strain when longitudinal strain occurs:
Increase in volume: $\triangle\text{V}=\text{A}\triangle\text{l}$
$\Rightarrow\frac{\triangle\text{v}}{\text{V}}=\frac{\text{A}\triangle\text{l}}{\text{A}\text{l}}=\frac{\triangle\text{l}}{\text{l}}$
So, $\frac{\triangle\text{V}}{\text{V}}$ is directly proportional $\frac{\triangle\text{l}}{\text{l}}\cdot$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from Some Mechanical Properties of Matter→Some Mechanical Properties of Matter — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

Two sound sources when sounded simultaneously produce four beats in $0.25$ second. the difference in their frequencies must be
→
In thermal compression, the body's:
→
An ideal gas undergoes a cyclic process as shown in diagram. The net work done by the gas in the cycle is
→
A stone is thrown at an angle $\theta $ to the horizontal reaches a maximum height $H$. Then the time of flight of stone will be
→
A block of mass $1\,\, kg$ is hanging vertically from a string of length $1\,\, m$ and mass /length $= 0.001\,\, Kg/m$. A small pulse is generated at its lower end. The pulse reaches the top end in approximately .... $\sec$
→

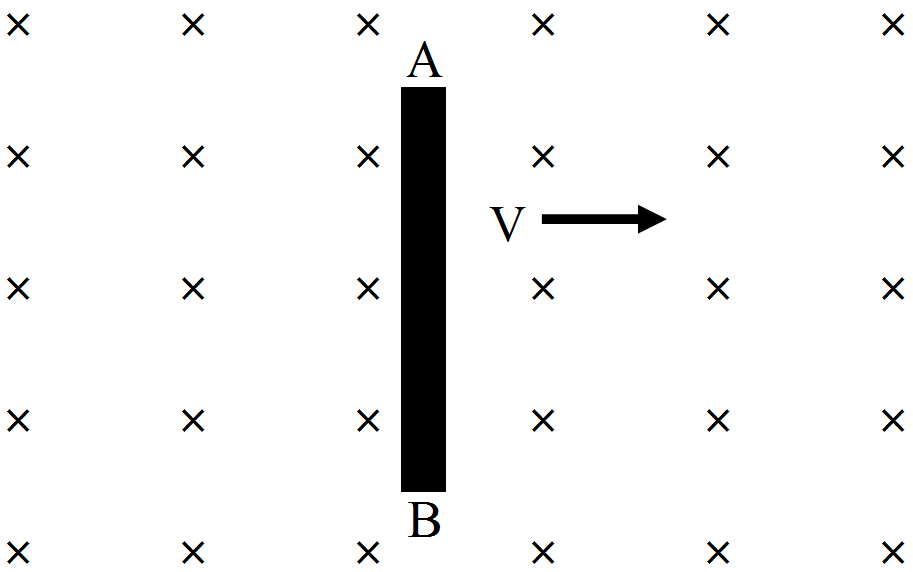

A rod $AB$ moves with a uniform velocity $v$ in a uniform magnetic field as shown in figure.
→
