Question
When a stress of $2 \times 10^6 N / m ^2$ is applied on a copper wire ( $Y =1^{11} N / m ^2$ ), what will be the percentage increase in its length?
✓
Answer
Given :
$\begin{aligned}
Y & =10^{11} N / m^2 \\
\text { Stress } & =\frac{F}{A}=2 \times 10^6 N / m^2 \\Y & =\frac{FL}{Al} \\
10^{11} & =2 \times 10^6 \times \frac{L}{l}
\end{aligned}$
$\therefore \quad \frac{l}{L}=\frac{2 \times 10^6}{10^{11}}=2 \times 10^{-5}$
For the percentage multiplying by 100 both sides
$\frac{1}{L} \times 100=2 \times 10^{-5} \times 100$
Percentage increase in length $\%$
$=2 \times 10^{-3}=0.002 \%$
$\begin{aligned}
Y & =10^{11} N / m^2 \\
\text { Stress } & =\frac{F}{A}=2 \times 10^6 N / m^2 \\Y & =\frac{FL}{Al} \\
10^{11} & =2 \times 10^6 \times \frac{L}{l}
\end{aligned}$
$\therefore \quad \frac{l}{L}=\frac{2 \times 10^6}{10^{11}}=2 \times 10^{-5}$
For the percentage multiplying by 100 both sides
$\frac{1}{L} \times 100=2 \times 10^{-5} \times 100$
Percentage increase in length $\%$
$=2 \times 10^{-3}=0.002 \%$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
An unruly demonstrator lifts a stone of mass 200g from the ground and throws it at his opponent. At the time of projection, the stone is 150cm above the ground and has a speed of 3.00m/s. Calculate the work done by the demonstrator during the process. If it takes one second for the demonstrator to lift the stone and throw, what horsepower does he use?
Why does a gun recoil? Derive the recoil velocity of a gun.
What is a geostationary satellite? Is it same as geo synchronous satellite?
Give two properties of Carnot's engine as compared to other engines. $($Carnot's theorem$).$
→A uniform electric field of $10 \mathrm{NC}^{-1}$ exists in the vertically downward direction. Find the increase in the electric potential as one goes up through a height of 50cm.
→Define angular acceleration.
The graph between total path length and time for a particle moving along a straight line as shown in figure is not possible. Explain why?
Find the maximum Coulomb force that can act on the electron due to the nucleus in a hydrogen atom.

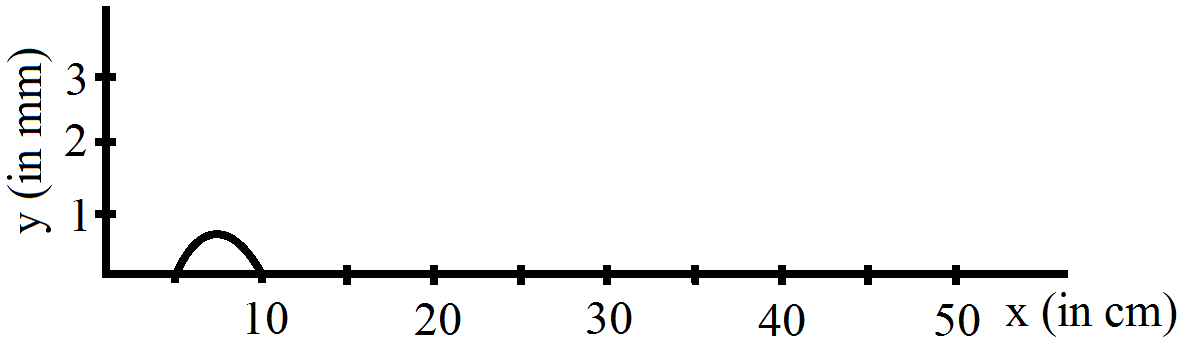

Figure shows a wave pulse at t = 0. The pulse moves to the right with a speed of 10cm/s. Sketch the shape of the string at t = 1s, 2s and 3s.
