1. units,dimensions and measurement — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysics1. units,dimensions and measurement1 Mark
MCQ
Which of the following physical quantities have the same dimensions?
  • ✓
    Electric displacement $(\overrightarrow{ D })$ and surface charge density
  • B
    Displacement current and electric field
  • C
    Current density and surface charge density
  • D
    Electric potential and energy
✓

Answer

Correct option: A.
Electric displacement $(\overrightarrow{ D })$ and surface charge density
a
Electric displacement

$\overrightarrow{ D }=\in_{0} \overrightarrow{ E }$

$[ D ]=\left[\in_{0} E \right]=\left[\in_{0} \frac{\sigma}{\in_{0}}\right]$

$[ D ]=[\sigma]$

$\rightarrow$ Surface change density $=\sigma$.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 1. units,dimensions and measurement→1. units,dimensions and measurement — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

The potential energy of a point particle is given by the expression $V(x)=-\alpha x+\beta \sin (x / \gamma)$. A dimensionless combination of the constants $\alpha, \beta$ and $\gamma$ is
→
The pressure $P_{1}$ and density $d_{1}$ of diatomic gas $\left(\gamma=\frac{7}{5}\right)$ changes suddenly to $P _{2}\left(> P _{1}\right)$ and $d _{2}$ respectively during an adiabatic process. The temperature of the gas increases and becomes $......$ times of its initial temperature.$\left(\right.$ given $\left.\frac{ d _{2}}{ d _{1}}=32\right)$
→
A source of frequency $150 Hz$ is moving in the direction of a person with a velocity of $110\, m/s$. The frequency heard by the person will be  .... $Hz$ (speed of sound in medium $= 330 m/s$)
→
Four spheres, each of mass $M$ and radius $\omega $are situated at the four corners of square of side $R$. The moment of inertia of the system about an axis perpendicular to the plane of square and passing through its centre will be
→

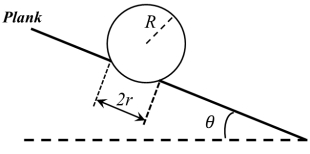

A football of radius $R$ is kept on a hole of radius $r (r < R)$ made on a plank kept horizontally. One end of the plank is now lifted so that it gets tilted making an angle $\theta$ from the horizontal as shown in the figure below. The maximum value of $\theta$ so that the football does not start rolling down the plank satisfies (figure is schematic and not drawn to scale) -
→
