Question
Write characteristics of electro magnetic waves.
✓
Answer
Characteristics of EM waves are as follows :
(1) In EM wave, the electric field, magnetic field and direction of wave propogation are mutually perpendicular.
(2) Relationship between the values / magnitudes of electric field and magnetic field in EM wave is :
$\frac{ E _0}{B_0}=c \text { or } \frac{ E _{ rms }}{ B _{ rms }}=c$
(3) EM waves are transverse and non-mechanical waves.
(4) Velocity of EM waves in vacuum, $c=\frac{1}{\sqrt{\mu_0 \varepsilon_0}}$
where, $\mu_0$ - permeability of free space
$\varepsilon_0$ - permittivity of free space
→Velocity of EM waves in medium, $v=\frac{1}{\sqrt{\mu \varepsilon}}$ where, $\mu$ - permeability of medium $\varepsilon$ - permittivity of medium
(5) As demonstrated by scientist Hertz, the EM waves experience diffraction, refraction and polarisation.
(6) EM waves are polarized.
(7) EM waves possess and carry energy, which is known as radiation energy.
(8) When an EM wave strikes (/ is incident) on a surface, it exerts pressure, which is called radiation pressure.
(9) Direction of $\vec{E} \times \vec{B}$ shows the direction of propogation of wave.
(10) In the region of space far from the source, the oscillations of electric field and magnetic field vectors are in phase.
(11) Energy density in EM wave, $\varrho=\varepsilon_0 E _{\text {rms }}^2$ and $\varrho=\frac{ B _{\text {rms }}^2}{\mu_0}$.
(1) In EM wave, the electric field, magnetic field and direction of wave propogation are mutually perpendicular.
(2) Relationship between the values / magnitudes of electric field and magnetic field in EM wave is :
$\frac{ E _0}{B_0}=c \text { or } \frac{ E _{ rms }}{ B _{ rms }}=c$
(3) EM waves are transverse and non-mechanical waves.
(4) Velocity of EM waves in vacuum, $c=\frac{1}{\sqrt{\mu_0 \varepsilon_0}}$
where, $\mu_0$ - permeability of free space
$\varepsilon_0$ - permittivity of free space
→Velocity of EM waves in medium, $v=\frac{1}{\sqrt{\mu \varepsilon}}$ where, $\mu$ - permeability of medium $\varepsilon$ - permittivity of medium
(5) As demonstrated by scientist Hertz, the EM waves experience diffraction, refraction and polarisation.
(6) EM waves are polarized.
(7) EM waves possess and carry energy, which is known as radiation energy.
(8) When an EM wave strikes (/ is incident) on a surface, it exerts pressure, which is called radiation pressure.
(9) Direction of $\vec{E} \times \vec{B}$ shows the direction of propogation of wave.
(10) In the region of space far from the source, the oscillations of electric field and magnetic field vectors are in phase.
(11) Energy density in EM wave, $\varrho=\varepsilon_0 E _{\text {rms }}^2$ and $\varrho=\frac{ B _{\text {rms }}^2}{\mu_0}$.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A cylinder rolls on a horizontal plane surface. If the speed of the centre is 25m/s, what is the speed of the highest point?
A wheel is making revolutions about its axis with uniform angular acceleration. Starting from rest, it reaches 100rev/sec in 4 seconds. Find the angular acceleration. Find the angle rotated during these four seconds.
Current in a circuit falls from 5.0 A to 0.0 A in 0.1 s. If an average emf of 200 V induced, give an estimate of the self-inductance of the coil.
A copper wire of cross $-$ sectional area $0.01\ cm^2$ is under a tension of $20N$. Find the decrease in the cross $-$ sectional area. Young's modulus of copper $= 1.1 \times 10 ^{11}N/m^2$ and Poisson's ratio $=\ 0.32.\Big [$Hint: $\frac{\triangle\text{A}}{\text{A}}=2\frac{\triangle\text{r}}{\text{r}}\Big]$
→Explain the refraction of a plane wave from rarer medium to a denser medium, using Huygen's principle.
Discuss the similarities and differences of BiotSavart law with the Coulomb's law.

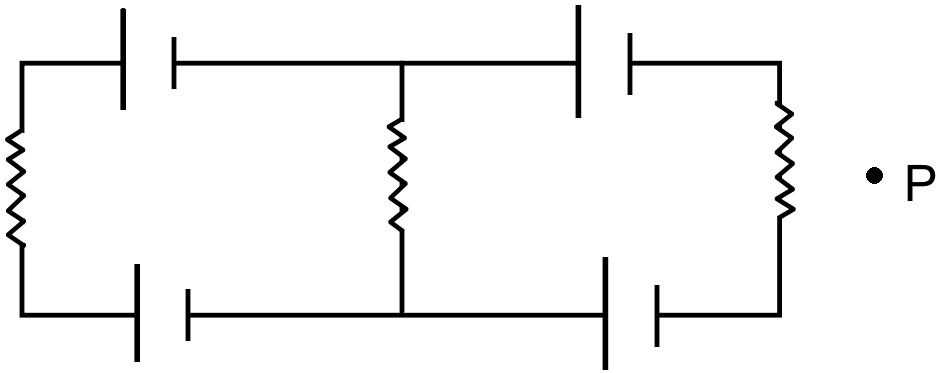

Each of the batteries shown in figure has an emf equal to 5V. Show that the magnetic field B at the point P is zero for any set of values of the resistances.
