Surface Areas and Volume of Solids MATHEMATICS - Surface Areas and Volume of Solids

ICSE - STD 9 - MATHEMATICS (ICSE - English Medium). 79 questions in this chapter.

Question types

Surface Areas and Volume of Solids question types

79 questions across 4 question groups — pick any mix to generate a MATHEMATICS paper with step-by-step answer keys.

79
Questions
4
Question groups
5
Question types
Sample Questions

Surface Areas and Volume of Solids questions

One sample from each question group in this chapter. Select any group above to see the full set with answer keys.

Q 1[2 Mark Question Answer]2 Marks
$\text{ABCDE}$ is the end view of a factory shed which is $50\  m$ long. The roofing of the shed consists of asbestos sheets as shown in the figure. The two ends of the shed are completely closed by brick walls.
Find the total surface area $($including roofing$)$ of the shed.
View full solution →
Q 3[3 marks sum]3 Marks
The cross section of a tunnel perpendicular to its length is a trapezium $\text{ABCD}$ as shown in the figure. $A M=B N ; A B=4.4 m, C D=3 m$ The height of a tunnel is $2.4 \ m$ . The tunnel is $5.4 \ m$ long. Calculate the cost of flooring at the rate of $Rs. 2.5$ per $m ^2$.
View full solution →
Q 4[3 marks sum]3 Marks

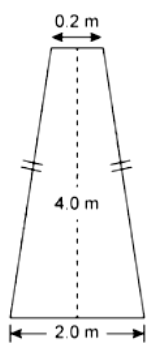

The figure shows the cross section of $0.2\ m$ a concrete wall to be constructed. It is $0.2\ m$ wide at the top, $2.0\ m$ wide at the bottom and its height is $4.0\ m$, and its length is $40\ m$. Calculate the volume of the concrete in the wall
View full solution →
Q 5[3 marks sum]3 Marks
Rain falls on a rectangular roof $28\ m$ by $9\ m$ and the water flows into a tank of dimensions $90\ m$ by $70 \ cm$ by $84 \ cm$. How much rainfall will fill the tank completely?
View full solution →
Q 6[3 marks sum]3 Marks
The figure represents the cross section of a swimming pool $10\ m$ broad, $2\ m$ deep at one end, $3\ m$ deep at the other end. Calculate the volume of water it will hold when full, given that its length is $40\ m.$
View full solution →
Q 7[3 marks sum]3 Marks
How many liters of water will flow out of a pipe having a cross sectional area $6 \ cm^2$ in one hour, if the speed of water in the pipe is $30 \ cm/sec$?
View full solution →
Q 8[4 marks sum]4 Marks
The area of cross section of a pipe is $5.4$ square / cm and water is pumped out of it at the rate of $27\ km$ per hour. Find, in litres, the volume of water which flows out of the pipe in $2$ minutes.
View full solution →
Q 9[4 marks sum]4 Marks
A swimming pool is $50\ m$ long and $15\ m$ wide. Its shallow and deep ends are $1.5\ m$ and $4.5\ m$ respectively. If the bottom of the pool slopes uniformly, find the amount of water in kilolitres required to fill the pool $(1\ m^3 = 1000$ liters$).$
View full solution →
Q 10[4 marks sum]4 Marks
Water flows at the rate of $1.5$ meters per second through a pipe with area of cross section $2.5 \ cm 2$ into a rectangular water tank of length $90 \ cm$ and breadth $50 \ cm$. Find the rise in water level in the tank after $4$ minutes.
View full solution →
Q 11[4 marks sum]4 Marks
The given figure is a cross $-$section of a victory stand used in sports. All measurements are in centimetres. Assume all angles in the figure are right angles. If the width of the stand is $60 \ cm$ , find The total surface area in $m ^2$.
View full solution →
Q 12[4 marks sum]4 Marks
A rectangular water tank measuring $8\ m \times 6\ m \times 4 \ cm$ is filled from a pipe of cross sectional area $1.5 \ cm^2$, the water emerging at $10\ m/s$. How long does it take to fill the tank?
View full solution →
Q 13[5 marks sum]5 Marks
The cross section of a tunnel perpendicular to its length is a trapezium $\text{ABCD}$ as shown in the figure. $AM = BN; AB = 4.4\ m, CD = 3\ m$ The height of a tunnel is $2.4\ m$. The tunnel is $5.4\ m$ long.Calculate the cost of painting the internal surface of the tunnel $($excluding the floor$)$ at the rate of $Rs. 5$ per $m^2$.
View full solution →
Q 14[5 marks sum]5 Marks

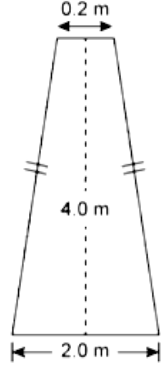

The figure shows the cross section of $0.2\ m$ a concrete wall to be constructed. It is $0.2\ m$ wide at the top,$ 2.0\ m$ wide at the bottom and its height is $4.0\ m$, and its length is $40\ m.$ If the whole wall is to be painted, find the cost of painting it at $2.50$ per sq $m.$
View full solution →
Q 15[5 marks sum]5 Marks

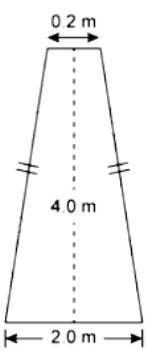

The figure shows the cross section of $0.2\ m$ a concrete wall to be constructed. It is $0.2\ m$ wide at the top, $2.0\ m$ wide at the bottom and its height is $4.0\ m$, and its length is $40\ m$. Calculate the cross sectional area
View full solution →
Q 16[5 marks sum]5 Marks
The given figure is a cross$-$section of a victory stand used in sports. All measurements are in centimetres. Assume all angles in the figure are right angles. If the width of the stand is $60 \ cm$, find The space it occupies in $cm^3.$
View full solution →
