Question 13 Marks

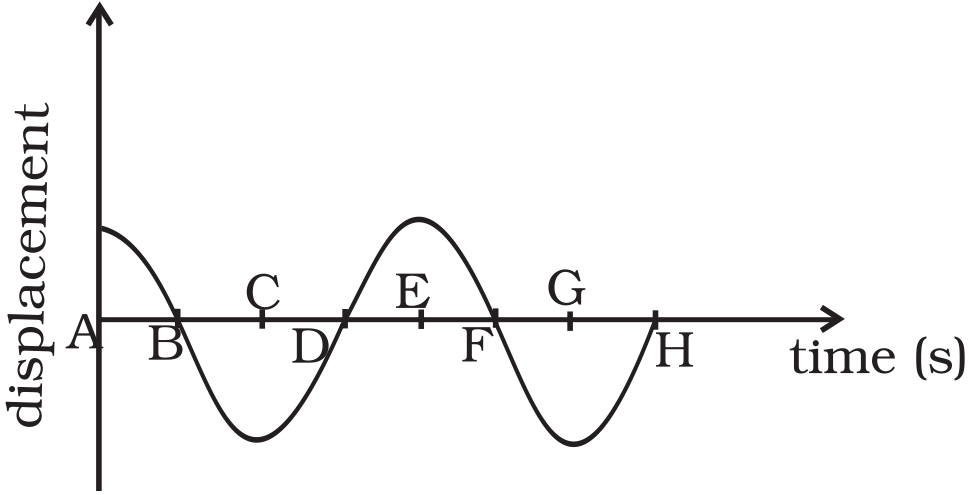

Displacement versus time curve for a particle executing S.H.M. is shown in Fig. Identify the points marked at which,

Velocity of the oscillator is zero,
Speed of the oscillator is maximum.

Answer

Key concept: In displacement-time graph of SHM, zero displacement values correspond to mean position; where velocity of the oscillator is maximum. Whereas the crest and troughs represent amplitude positions, where displacement is maximum and velocity of the oscillator is zero.

The points A, C, E, G lie at extreme positions (maximum displacement, y = A). Hence the velocity of the oscillator is zero.
The points B, D, F, H lie at mean position (zero displacement, y = 0). We know the speed is maximum at mean position.

View full question & answer→

Question 23 Marks

Find the displacement of a simple harmonic oscillator at which its PE is half of the maximum energy of the oscillator.

Answer

Let us assume that the required displacement where PE is half of the maximum energy of the oscillator be x.

The potential energy of the oscillator at this position,

$\text{PE}=\frac{1}{2}\text{kx}^2=\frac{1}{2}\text{m}\omega^2\text{x}^2$

maximum energy of the oscillator = maximum potential energy = Total energy

$\text{TE}=\frac{1}{2}\text{m}\omega^2\text{A}^2$

Where, A = amplitude of motion.

We are given, $\text{PE}=\frac{1}{2}\text{TE}$

$\Rightarrow\frac{1}{2}\text{m}\omega^2\text{x}^2=\frac{1}{2}\Big[\frac{1}{2}\text{m}\omega^2\text{A}^2\Big]$

$\Rightarrow\text{x}^2=\frac{\text{A}^2}{2}\ \text{or}\ \text{x}=\sqrt{\frac{\text{A}^2}{2}}=\pm\frac{\text{A}}{\sqrt{2}}$

View full question & answer→

Question 33 Marks

Show that the motion of a particle represented by $\text{y}=\sin\text{ax}-\cos\cot$ is simple harmonic with a period of $\frac{2\pi}{\omega}.$

Answer

A function will represent S.H.M. if it can be written uniquely in the form of a or a sin

$\Big(\frac{2\pi}{\text{T}}\text{t}+\phi\Big)$

Now $\text{y}=\sin\omega\text{t}-\cos\omega\text{t}$

$\text{y}=\sqrt{2}\Big[\sin\omega\text{t}\frac{1}{\sqrt{2}}-\cos\omega\text{t}\sin\frac{\pi}{4}\Big]$

$\text{y}=\sqrt{2}\sin\Big(\omega\text{t}-\frac{\pi}{4}\Big)$

Comparing with standard SHM $\text{y}=\text{a}\sin\Big(\frac{2\pi}{\text{T}}\text{t}+\phi\Big)$

$\text{w}=\frac{2\pi}{\text{T}}\ \text{or}\ \text{T}=\frac{2\pi}{\omega}.$

View full question & answer→

Question 43 Marks

What is the ratio of maxmimum acceleration to the maximum velocity of a simple harmonic oscillator?

Answer

Consider a SHM. $\text{x}=\text{A}\sin\omega\text{t}$

$\text{v}=\frac{\text{dx}}{\text{dt}}=\text{A}\omega\cos\omega\text{t}$

For $\text{v}_\text{max}\cos\omega\text{t}=-1$

$\therefore\text{v}_\text{max}=\text{A}\omega$

$\text{a}=\frac{\text{dv}}{\text{dt}}=-\text{A}\omega^2\sin\omega\text{t}$

For $\text{a}_\text{max}\sin\omega\text{t}=-1 $

$\text{a}_\text{max}=\text{A}\omega^2$

$\therefore\frac{\text{a}_\text{max}}{\text{v}_\text{max}}=\frac{\text{A}\omega^2}{\text{A}\omega}=\frac{\omega}{1}$

View full question & answer→

Question 53 Marks

When will the motion of a simple pendulum be simple harmonic?

Answer

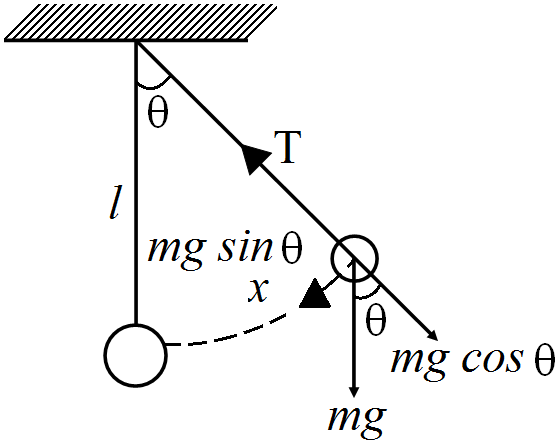

Consider a pendulum of length l and mass of bob m is displaced by angle $\theta$ as shown in fig.

The restoring force = F $=\text{mg}\sin\theta$

If $\theta$ is small then $\sin\theta=\theta=\frac{\text{arc}}{\text{radius}}=\frac{\text{x}}{\text{l}}$

$\therefore\text{F}=-\text{mg}\frac{\text{x}}{1}\ \text{or}\ \text{F}\propto(-\text{x})$

$(\because\text{m}_2\text{g},1\text{are constant})$

Hence, the motion of simple pendulam will be smile harmonic for small angle $\theta.$

View full question & answer→
