4 Marks Questions

Question 14 Marks

Draw the graph of y = |x|.

Answer

We have, y = |X| ...(i) Putting x = 0, we get y = 0 Putting x = 2, we get y = 2 Putting x = -2, we get y = 2 Thus, we have the following table for the points on graph of |x|.

x	0	2	-2
y	0	2	2

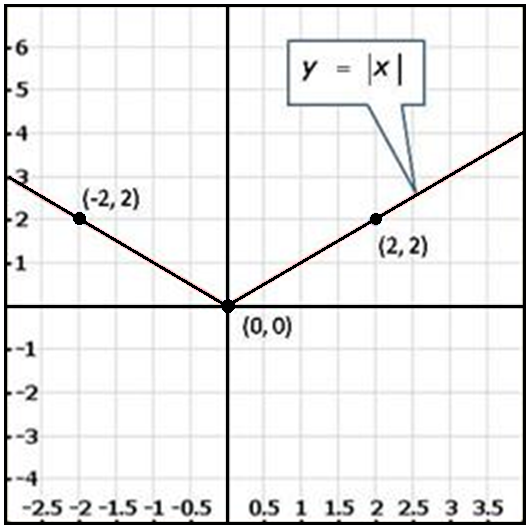

The graph of the equation y = |x|:

View full question & answer→

Question 24 Marks

Draw the graph of the following linear equations in two variables:
x + y = 4

Answer

We have,
x + y = 4
⇒ x = 4 - y ...(i)
Putting y = 0, we get x = 4 - 0 = 4
Putting y = 3, we get x = 4 - 3 = 1
Thus, we have the following table giving two points on the line represented by the equation x + y = 4:

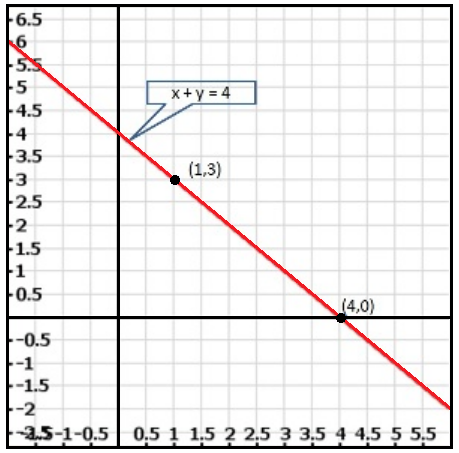

Graph of the equation x + y = 4:

View full question & answer→

Question 34 Marks

Draw the graph of the following linear equations in two variables:
y = 2x

Answer

We have,
y = 2x ...(i)
Putting x = 0, we get y = 2 × 0 = 0
Putting x = 1, we get y = 2 × 1 = 2
Thus, we have the following table giving two points on the line represented by the equation y = 2x:

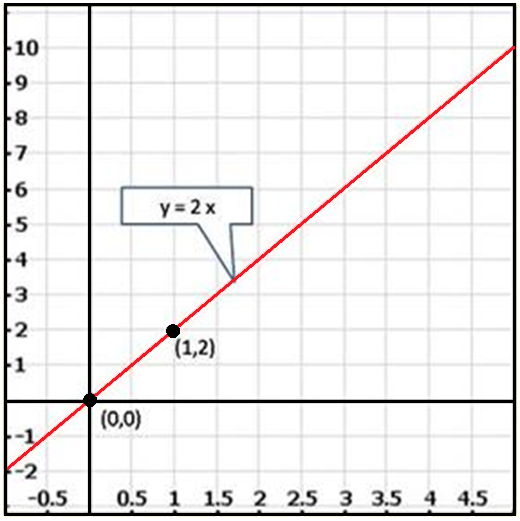

Graph of the equation y = 2x:

View full question & answer→

Question 44 Marks

Draw the graph of the equations given below. Also, find the coordinates of the points where the graph cuts the coordinate axes:
6x - 3y = 12

Answer

We have,
6x - 3y = 12
⇒ 3(2x - y) = 12
⇒ 2x - y = 4
⇒ 2x - 4 = y
⇒ y = 2x - 4 ...(i)
Putting x = 0 in (i), we get y = -4
Putting x = 2 in (i), we get y = 0
Thus, we obtain the following table giving coordinates of two points on the line represented by the equation 6x - 3y = 12

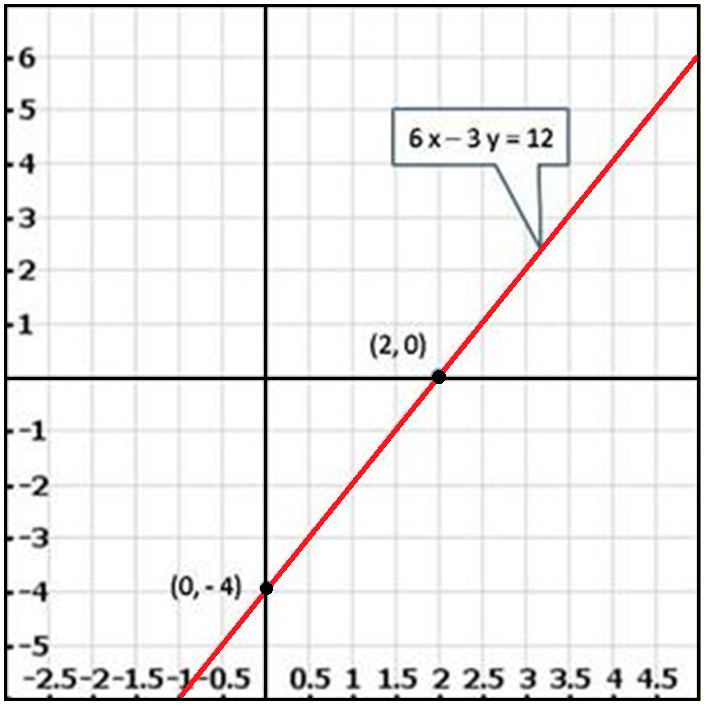

The graph of line 6x - 3y = 12:

Clearly, the line intersect with the coordinate axes (2, 0) and (0, -4).

View full question & answer→

Question 54 Marks

Draw the graph of the following linear equations in two variables:
2y = -x + 1

Answer

We have, 2y = -x + 1⇒ x = 1 - 2y ...(i)

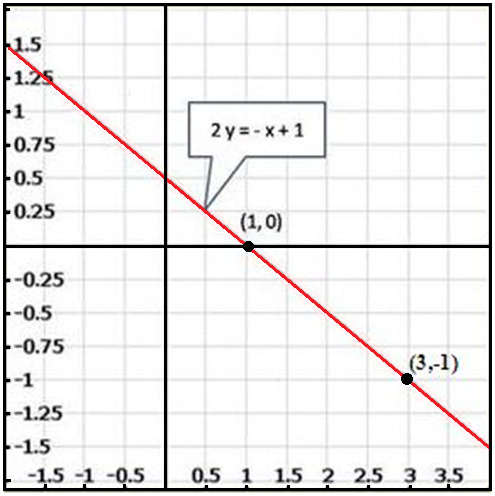

Putting y = 0, we get x = 1 - 2 × 0 = 1 Putting y = -1 we get x = 1 - 2(-1) = 3 Thus, we have the following table giving two points on the line represented by the equation 2y = -x + 1: Graph of the equation 2y = -x + 1:

View full question & answer→

Question 64 Marks

Draw the graph of the following linear equations in two variables:
x - y = 2

Answer

We have,
x - y = 2
⇒ x = 2 + y ...(i)
Putting y = 0, we get x = 2 + 0 = 2
Putting y = -2, we get x = 2 - 2 = 0
Thus, we have the following table giving two points on the line represented by the equation x - y = 2:

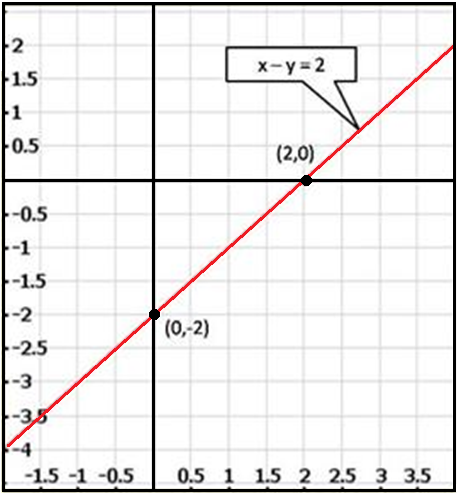

Graph of the equation x - y = 2:

View full question & answer→

Question 74 Marks

Draw the graph of the following linear equations in two variables:
3x + 5y = 15

Answer

We have,
3x + 5y = 15
⇒ 3x = 15 - 5y
$\Rightarrow\text{x}=\frac{15-5\text{y}}{3}\ ...\text{(i)}$
Putting y = 0, we get $\text{x}=\frac{15-5\times0}{3}=5$
Putting y = 3, we get $\text{x}=\frac{15-5\times3}{3}=0$

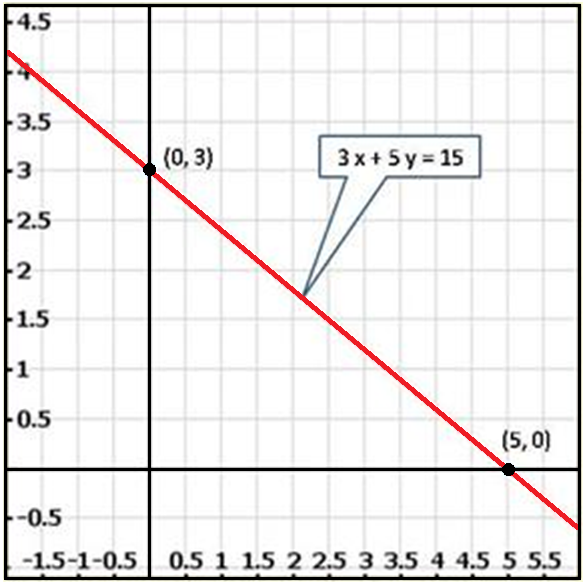

Thus, we have the following table giving two points on the line represented by the equation 3x + 5y = 15:

View full question & answer→

Question 84 Marks

Draw the graph of the following linear equations in two variables:
$\frac{\text{x}}{2}-\frac{\text{y}}{3}=2$

Answer

We have,
$\frac{\text{x}}{2}-\frac{\text{y}}{3}=2$
$\Rightarrow\frac{3\text{x}-2\text{y}}{6}=2$
$\Rightarrow3\text{x}-2\text{y}=12$
$\Rightarrow3\text{x}=12+2\text{y}$
$\Rightarrow\text{x}=\frac{12+2\text{y}}{3}$
Putting y = -6, we get $\text{x}=\frac{12+2(-6)}{3}=0$
Putting y = -3, we get $\text{x}=\frac{12+2(-3)}{3}=2$
Thus, we have the following table giving two points on the line represented by the equation $\frac{\text{x}}{2}-\frac{\text{y}}{3}=2:$

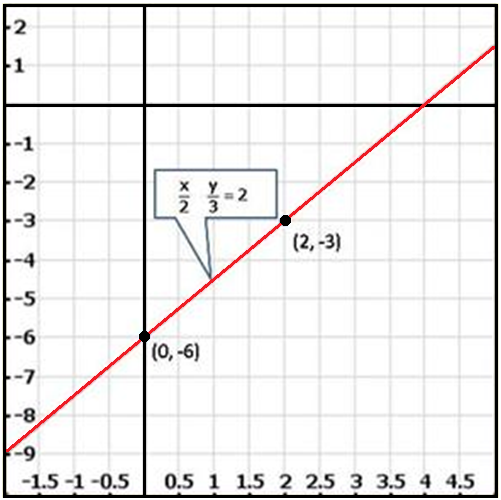

Graph of the equation $\frac{\text{x}}{2}-\frac{\text{y}}{3}=2:$

View full question & answer→

Question 94 Marks

Draw the graph of the equations given below. Also, find the coordinates of the points where the graph cuts the coordinate axes:
2x + y = 6

Answer

we have,
2x + y = 6
⇒ y = 6 - 2x ...(i)
Putting x = 3 in (i), we get y = 6 - 2 × 3 = 0
Putting x = 4 in (i), we get y = 6 - 2 × 4 = -2
Thus, we obtain the following table giving coordinates of two points on the line represented by the equation 2x + y = 6.

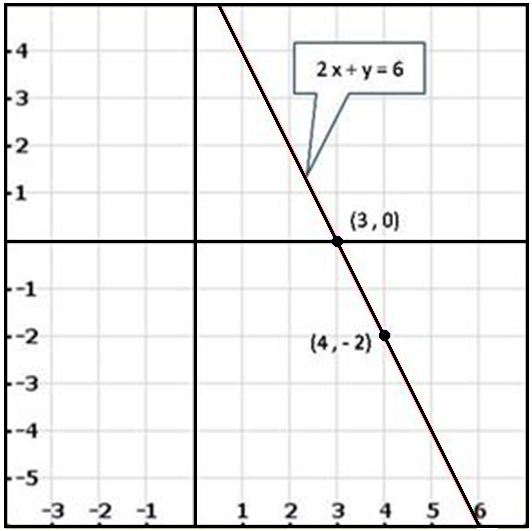

The graph of line 2x + y = 6:

Clearly, the line intersect with the coordinate axes (3, 0) and (0, 6).

View full question & answer→

Question 104 Marks

Draw the graph of the following linear equations in two variables:
-x + y = 6

Answer

We have,
-x + y = 6
⇒ y = 6 + x ...(i)
Putting x = -4, we get y = 6 - 4 = 2
Putting x = -3, we get y = 6 - 3 = 3
Thus, we have the following table giving two points on the line represented by the equation -x + y = 6:

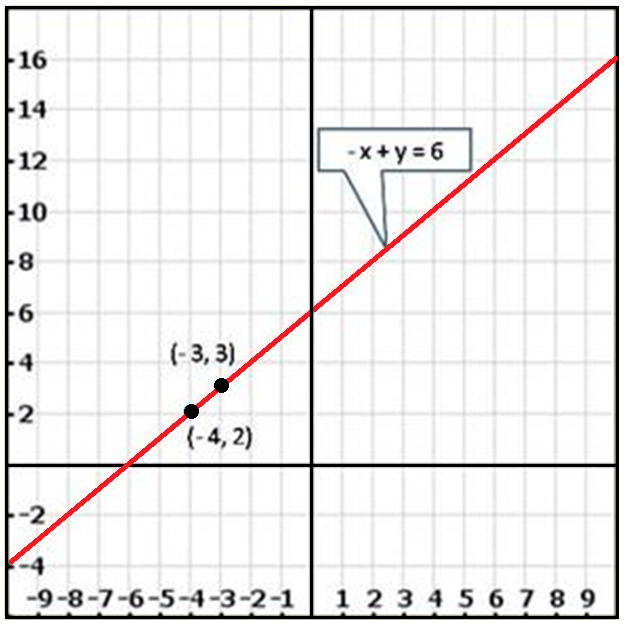

Graph of the equation -x + y = 6:

View full question & answer→

Question 114 Marks

Draw the graph of the equations given below. Also, find the coordinates of the points where the graph cuts the coordinate axes:
-x + 4y = 8

Answer

we have,
-x + 4y = 8
⇒ 4y - 8 = x
⇒ x = 4y - 8 ...(i)
Putting y = 1 in (i), we get x = 4 × 1 - 8 = -4
Putting y = 2 in (i), we get x = 4 × 2 - 8 = 0
Thus, we obtain the following table giving coordinates of two points on the line represented by the equation -x + 4y = 8.

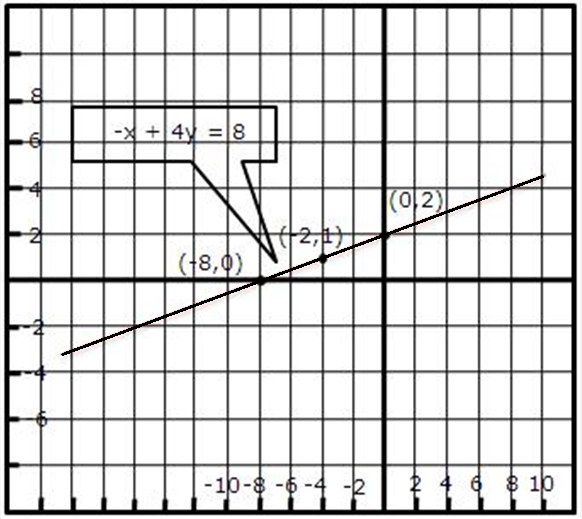

The graph of line -x + 4y = 8:

Clearly, the line intersect with the coordinate axes (-8, 0) and (0, 2).

View full question & answer→

Question 124 Marks

Draw the graph of the equations given below. Also, find the coordinates of the points where the graph cuts the coordinate axes:
3x + 2y + 6 = 0

Answer

we have,
3x + 2y + 6 = 0
⇒ 2y = -6 - 3x
$\Rightarrow\text{y}=\frac{-6-3\text{x}}{2}\ ...(\text{i})$
Putting x = -2 in (i), we get $\text{y}=\frac{6-3(-2)}{2}=0$
Putting x = -4 in (i), we get $\text{y}=\frac{-6-3(-4)}{2}=3$
Thus, we obtain the following table giving coordinates of two points on the line represented by the equation 3x + 2y + 6 = 0.

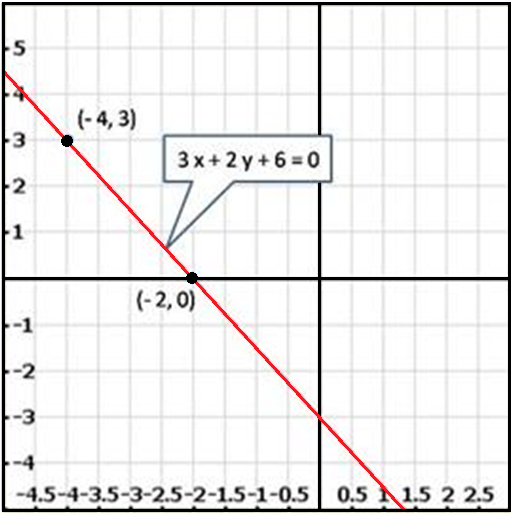

The graph of line 3x + 2y + 6 = 0:

Clearly, the line intersect with the coordinate axes (-2, 0) and (0, -3).

View full question & answer→

Question 134 Marks

Draw the graph of the following linear equations in two variables:
$\frac{\text{x}-2}{3}=\text{y}-3$

Answer

We have, $\frac{\text{x}-2}{3}=\text{y}-3$⇒ x - 2 = 3(y - 3)
⇒ x - 2 = 3y - 9
⇒ x = 3y - 9 + 2
⇒ x = 3y - 7 ...(i)

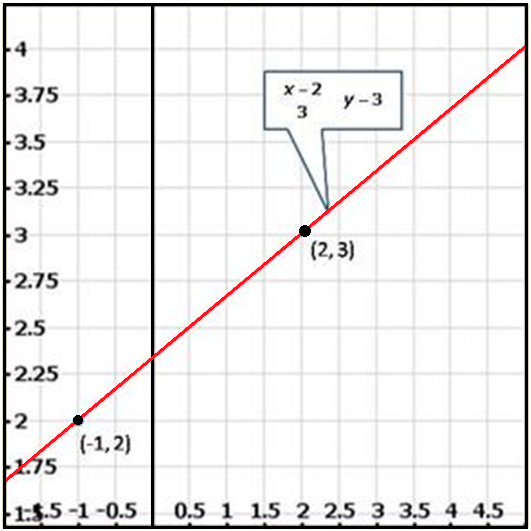

Putting y = 2, we get x = 3(2) - 7 = -1 Putting y = 3, we get x = 3(3) - 7 = 2 Thus, we have the following table giving two points on the line represented by the equation $\frac{\text{x}-2}{3}=\text{y}-3:$ Graph of the equation $\frac{\text{x}-2}{3}=\text{y}-3:$

View full question & answer→

Question 144 Marks

Draw the graph of y = |x| + 2.

Answer

We have, y = |x| + 2 ...(i) Putting x = 0, we get y = 2 Putting x = 1, we get y = 3 Putting x = -1, we get y = 3 Thus, we have the following table for the points on graph of |x| + 2:

x	0	1	-1
y	2	3	3

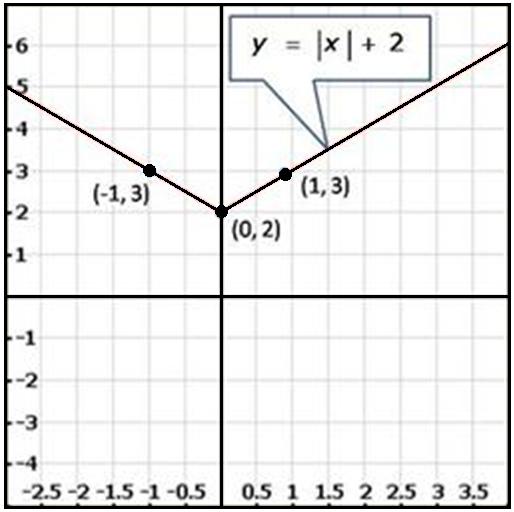

The graph of the equation y = |x| + 2:

View full question & answer→

Question 154 Marks

Draw the graphs of the following linear equations on the same graph paper:
2x + 3y = 12, x - y = 1
Find the coordinates of the vertices of the triangle formed by the two straight lines and the y-axis. Also, find the area of the triangle.

Answer

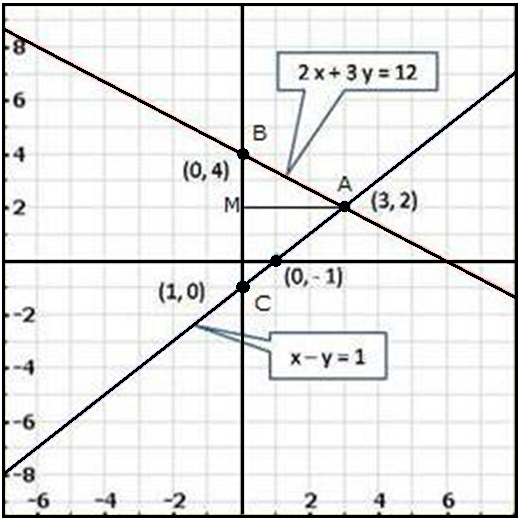

Graph of the equation 2x + 3y = 12:
We have,
2x + 3y = 12
⇒ 2x = 12 - 3y
$\Rightarrow\text{x}=\frac{12-3\text{y}}{2}\ ...\text{(i)}$
Putting y = 4, we get $\text{x}=\frac{12-3\times4}{2}=0$
Putting y = 2, we get $\text{x}=\frac{12-3\times2}{2}=3$
Thus, we have the following table for the points on the line 2x + 3y = 12:

x	0	3
y	4	2

Ploting points A(0, 4), B(3, 2) on the graph paper and drawing a line passing through them, we obtain graph of the equation 2x + 3y = 12.
Graph of the equation x - y = 1:
We have,
x - y = 1
⇒ x = 1 + y
Putting y = 0, we get x = 1 + 0 = 1
Putting y = -1, we get x = 1 - 1 = 0
Thus, we have the following table for the points on the line x - y = 1:

x	1	0
y	0	-1

Ploting points C(1, 0) and D(0, -1) on the same graph paper and drawing a line passing through them, we obtain the graph of the line represented by the equation x - y = 1.

Clearly, two lines intersect at A(3, 2).
The graph of line 2x + 3y = 12 intersect with y-axis at B(0, 4) and the graph of the line x - y = 1 intersect with y-axis at C(0, -1).
So, the vertices of the triangle formed by the two straight lines and y-axis are A(3, 2), B(0, 4) and C(0, -1).
Now,
$\text{Area of }\triangle\text{ABC}=\frac{1}{2}(\text{Base}\times\text{Height})$
$=\frac{1}{2}(\text{BC}\times\text{AM})$
$=\frac{1}{2}(5\times3)$
$=\frac{15}{2}\text{sq.units.}$

View full question & answer→
